Tower Heliostat Cycloidal Gear Reducer Solar Tracking Drive High Precision

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HDR series
Minimum Order Quantity 1pcs
Price US $ 3000 - 90000 / Piece
Packaging Details 1 PCS packed in ONE WOODEN CRATE
Delivery Time 40 days
Payment Terms T/T or LC
Supply Ability 100pcs/month
Product Details
Temperatue -10 To +50 Degree Tracking Speed 0.12
Self Locking Yes Pitch Angle 100
Axial Load 15000 Weight 320Kg
High Light

cycloidal speed reducer

,

cyclo gear reducer
Leave a Message
Product Description

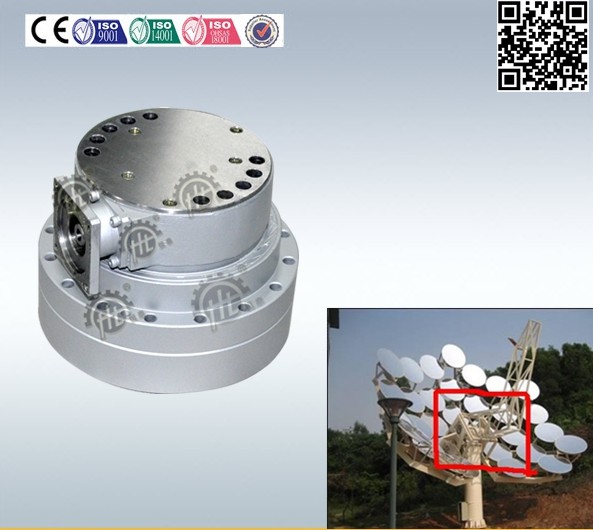

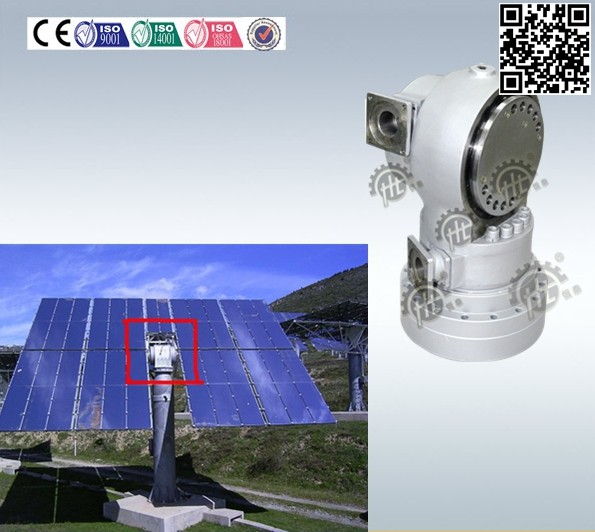

Tower Heliostat Cycloidal Gear Reducer Solar Tracking Drive High Precision




Features:

  • Model:HDR S30
  • Ratio: 11088 (Range 11088~55200)
  • The maximum dynamic torque: 3150 N.m (Range 3150~62500)
  • The maximum static torque:4500N.m (Range 4500~104000)
  • Capsizing moment: 5500 N.m (Range 5500~110000)
  • Application: Mainly Tower type,Disc type condenser
  • Customized by customers’ request
  • Delivery time is short if product standard
  • Global service



Performance


Pitch direction

Horizontal direction

Ratio

40800



Backlash


0.01°

0.01°

Max speed(°/min)

15

12

required torque of normal work(Nm)

6900

774

Momentary max torque (Nm)

32700

21600

Static overturning force Fx(N)

-5500

15800

Dynamic overturning force Fy(N)

15000

22800


Competitive Advantage:



A new generation solar tracker drive device developed by HENGFENGTAI Reducer Mfg Company



Can be dual-axis high precision transmission when installed linear actuator



With independent intellectual property rights



Output backlash 0.015°



The core transmit parts all are surface hardened and grinded processing precisely.



HDR series output use precision planetary device which realize multi teeth contact mesh output.



In the same outline dimensions the transmission capacity is 2-4 times bigger than double lead,second formed worm drive.



Model/Data



Ratio

Max dynamic torque(N.m)

Max static torque(N.m)

Tilting moment toque

Torsional Stifness

(N.m/rad)

Backlash

(degree)

HDR30

Horizontal

11088

3150

4500

5500

3.53*10e6

0.015

Elevation

8348.4

HDR50

Horizontal

11088

4950

7030

8500

5.41*10e6

0.015

Elevation

8348.4

HDR100



Horizontal

40200

10190

15500

22500

6.84*10e6

0.015

Elevation

40367.5

HDR190

Horizontal

40200

18670

28290

44000

11.27*10e6

0.015

Elevation

40367.5

HDR270



Horizontal

50250

27500

45800

70000

23.69*10e6

0.015

Elevation

50417.5

HDR400

Horizontal

50250

39900

66500

90000

32.07*10e6

0.015

Elevation

50417.5

HDR600

Horizontal

55200

62500

104000

110000

47.7*10e6

0.015

Elevation

55372.5


Tower Heliostat Cycloidal Gear Reducer Solar Tracking Drive High Precision 0
