Azimuth / Elevation Cycloidal Gear Reducer Static Axial Rating
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Self Locking | Yes | Temperatue | -10 To +50 Degree |
|---|---|---|---|
| Pitch Angle | 100 | Axial Load | 15000 |
| Tracking Speed | 0.12 | Weight | 320Kg |
| Highlight | cycloidal speed reducer,speed reduction gearbox |
||
Product Description

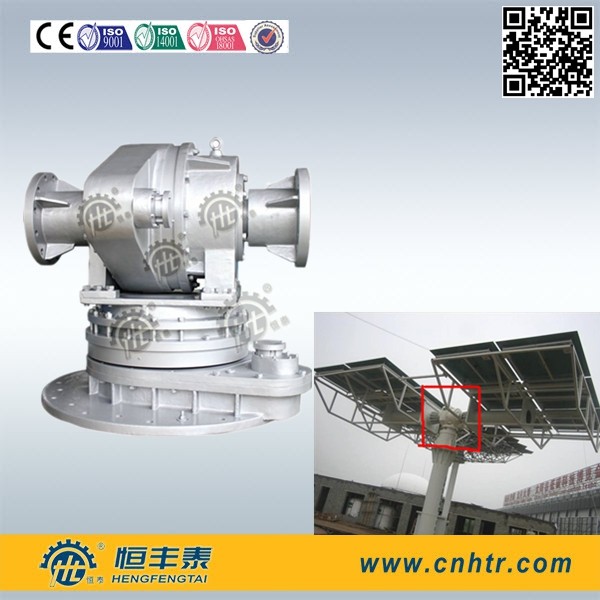

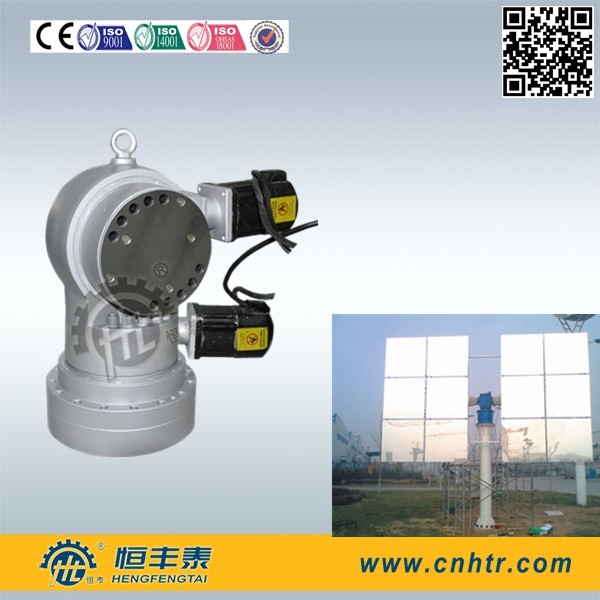

Azimuth / Elevation Cycloidal Gear Reducer Static Axial Rating
Features:
|
Type |
Torque Nm |
|
|
Horizontal torque |
Elevation torque |
|
|
HJR01 |
1030 |
1360 |
|
HJR02 |
5590 |
6650 |
|
HJR03 |
10700 |
13250 |
|
HJR04 |
21350 |
25500 |
|
HJR05 |
38950 |
44500 |
|
HJR06 |
47800 |
55700 |
|
HJR07 |
59600 |
68500 |
|
HJR08 |
67600 |
75800 |
|
Performance |
Pitch direction |
Horizontal direction |
|
Ratio |
40800 |
|
|
Backlash |
0.01° |
0.01° |
|
Max speed(°/min) |
15 |
12 |
|
required torque of normal work(Nm) |
6900 |
774 |
|
Momentary max torque (Nm) |
32700 |
21600 |
|
Static overturning force Fx(N) |
-5500 |
15800 |
|
Dynamic overturning force Fy(N) |
15000 |
22800 |
|
Performance
Model |
ratio |
output torque (Nm) |
/Permissible acceleration / deceler ation torque (Nm) |
Momen tary maximum allowable torque (Nm) |
Allowable torque (Nm) |
Instan taneous maximum allowable load
|
Backlash arc.min. |
Torsional Stiffness Nm/arc. min. |
Moment Rigidity Nm/ arc.min |
|
|
HJR01 |
Horizontal
|
450~ 50000 |
540 |
1350 |
2025 |
4000 |
9000 |
0.05 |
1.9×10e6 |
3.6×10e6 |
|
Pitching |
940 |
2350 |
3525 |
3500 |
12000 |
0.05 |
||||
|
HJR02 |
Horizontal
|
1372 |
3430 |
5145 |
6000 |
11000 |
0.05 |
3.2×10e6 |
4.5×10e6 |
|
|
Pitching |
1940 |
4850 |
7275 |
4500 |
15000 |
0.05 |
||||
|
HJR03 |
Horizontal
|
3300 |
8250 |
12375 |
7500 |
16000 |
0.05 |
6.1×10e6 |
8.3×10e6 |
|
|
Pitching |
4640 |
11600 |
17400 |
5500 |
19000 |
0.05 |
||||
|
HJR04 |
Horizontal
|
5680 |
14200 |
23870 |
9500 |
20000 |
0.05 |
11.4×10e6 |
16.2×10e6 |
|
|
Pitching |
7060 |
17650 |
34375 |
8000 |
25000 |
0.05 |
||||
|
HJR05 |
Horizontal
|
9056 |
22640 |
40960 |
12500 |
23000 |
0.05 |
19.2×10e6 |
25.4×10e6 |
|
|
Pitching |
12680 |
31700 |
47550 |
10000 |
30000 |
0.05 |
||||
|
HJR06 |
Horizontal
|
15440 |
38600 |
57900 |
15000 |
25000 |
0.05 |
30.3×10e6 |
34.5×10e6 |
|
|
Pitching |
18160 |
45400 |
68100 |
10500 |
33000 |
0.05 |
||||
|
HJR07 |
Horizontal
|
16704 |
41760 |
62640 |
11500 |
28000 |
0.05 |
40.6×10e6 |
45.7×10e6 |
|
|
Pitching |
23348 |
58370 |
87555 |
12500 |
36000 |
0.05 |
||||
|
HJR08 |
Horizontal
|
24500 |
61250 |
91875 |
18000 |
32000 |
0.05 |
50.7×10e6 |
60.5×10e6 |
|
|
Pitching |
25200 |
63000 |
94500 |
14000 |
54000 |
0.05 |
||||
