Dual Drive Speed Increaser Gearbox 0.05 Arm-Min Backlash Positioner
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HJR series |
| Minimum Order Quantity | 1pcs |
| Price | US $ 3000 - 90000 / Piece |
| Packaging Details | 1 PCS packed in ONE WOODEN CRATE |
| Delivery Time | 40 days |
| Payment Terms | T/T or LC |
| Supply Ability | 100pcs/month |
Product Details
| Weight | 320Kg | Temperatue | -10 To +50 Degree |
|---|---|---|---|
| Tracking Speed | 0.12 | Self Locking | Yes |
| Pitch Angle | 100 | Axial Load | 15000 |
| High Light | cycloidal speed reducer,cyclo gear reducer |
||
Product Description

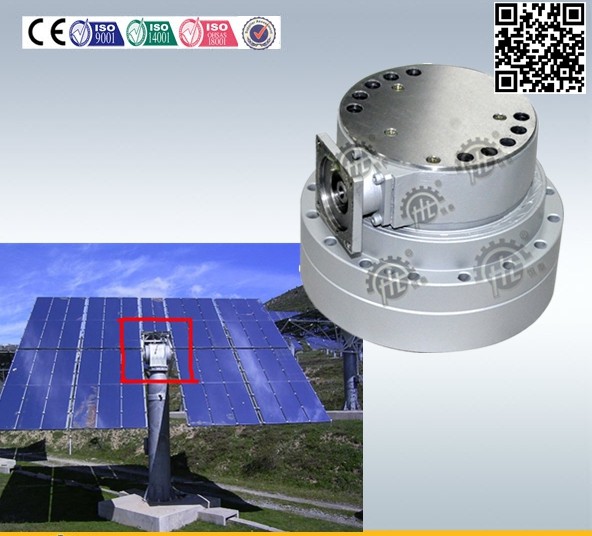

Dual Drive Speed Increaser Gearbox 0.05 Arm-Min Backlash Positioner
Features:
Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
|
Performance |
Pitch direction |
Horizontal direction |
|
Ratio |
40800 |
|
|
Backlash |
0.01° |
0.01° |
|
Max speed(°/min) |
15 |
12 |
|
required torque of normal work(Nm) |
6900 |
774 |
|
Momentary max torque (Nm) |
32700 |
21600 |
|
Static overturning force Fx(N) |
-5500 |
15800 |
|
Dynamic overturning force Fy(N) |
15000 |
22800 |
|
Performance
Model |
ratio |
output torque(Nm) |
/Per missible acc eleration / decele ration torque (Nm) |
Mom entary maxi mum allo wable torque (Nm) |
Allowable torque (Nm) |
Instan taneous maximum allowable load
|
Back lash arc. min. |
Torsional Stiffness Nm/arc. min. |
Moment Rigidity Nm/ arc.min |
|
|
HJR01 |
Horizontal
|
450~ 50000 |
540 |
1350 |
2025 |
4000 |
9000 |
0.05 |
1.9× 10e6 |
3.6× 10e6 |
|
Pitching |
940 |
2350 |
3525 |
3500 |
12000 |
0.05 |
||||
|
HJR02 |
Horizontal
|
1372 |
3430 |
5145 |
6000 |
11000 |
0.05 |
3.2×10e6 |
4.5× 10e6 |
|
|
Pitching |
1940 |
4850 |
7275 |
4500 |
15000 |
0.05 |
||||
|
HJR03 |
Horizontal
|
3300 |
8250 |
12375 |
7500 |
16000 |
0.05 |
6.1×10e6 |
8.3× 10e6 |
|
|
Pitching |
4640 |
11600 |
17400 |
5500 |
19000 |
0.05 |
||||
|
HJR04 |
Horizontal
|
5680 |
14200 |
23870 |
9500 |
20000 |
0.05 |
11.4×10e6 |
16.2× 10e6 |
|
|
Pitching |
7060 |
17650 |
34375 |
8000 |
25000 |
0.05 |
||||
|
HJR05 |
Horizontal
|
9056 |
22640 |
40960 |
12500 |
23000 |
0.05 |
19.2×10e6 |
25.4× 10e6 |
|
|
Pitching |
12680 |
31700 |
47550 |
10000 |
30000 |
0.05 |
||||
|
HJR06 |
Horizontal
|
15440 |
38600 |
57900 |
15000 |
25000 |
0.05 |
30.3×10e6 |
34.5× 10e6 |
|
|
Pitching |
18160 |
45400 |
68100 |
10500 |
33000 |
0.05 |
||||
|
HJR07 |
Horizontal
|
16704 |
41760 |
62640 |
11500 |
28000 |
0.05 |
40.6×10e6 |
45.7× 10e6 |
|
|
Pitching |
23348 |
58370 |
87555 |
12500 |
36000 |
0.05 |
||||
|
HJR08 |
Horizontal
|
24500 |
61250 |
91875 |
18000 |
32000 |
0.05 |
50.7×10e6 |
60．5× 10e6 |
|
|
Pitching |
25200 |
63000 |
94500 |
14000 |
54000 |
0.05 |
||||
Competitive Advantage:
- Model: HD RS 270
- Ratio: 50250 (Range 11088~55200)
- The maximum dynamic torque: 27500 N.m (Range 3150~62500)
- The maximum static torque:45800N.m (Range 4500~104000)
- Capsizing moment: 70000 N.m (Range 5500~110000)

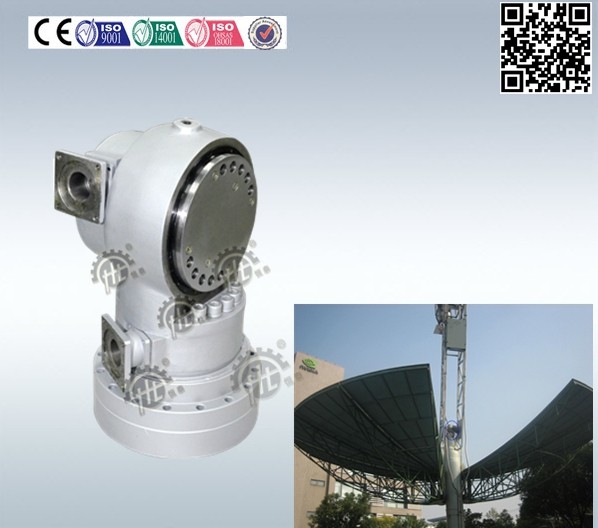

- Application: Mainly Tower type,Disc type condenser
