TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod

  • TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod
  • TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod
  • TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod
  • TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod
  • TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod
Certification CE, ISO9001:2008, TUV, SGS,etc
Model Number TA60-60D
Minimum Order Quantity 20PCS
Price FOB $500/PCS
Packaging Details Standard export package
Delivery Time 7-30Day(according to qty)
Payment Terms L/C, T/T, Western Union
Supply Ability 1000PCS/MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Hardness Of Gear HRC58-62 Transimission Stage Single, Two-Reduction
Speed Ratio 15/1 Output Form Hollow Shaft Output
Standard Configuration Tie Rod Optional Configuration Backstop
Diameter Of Output Shaft 60mm Weight 105KG
Highlight

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description
Decription:



TheTA series is a long established, heavy duty shaft mounted speed reducer for material handling applications where reliabiility and low maintance are a key factor.



Details for TA60-60D-15/1:



Product name:  TA shaft mounted gearbox

Model: TA60-60D-15/1

Ratio: 15/1

Diameter of output shaft: 60mm

Rated power: 33KW

Output torque: 3200Nm

Standard configuration: Torque arm

Color: Grey

Tips: Need add cost if need Backstop

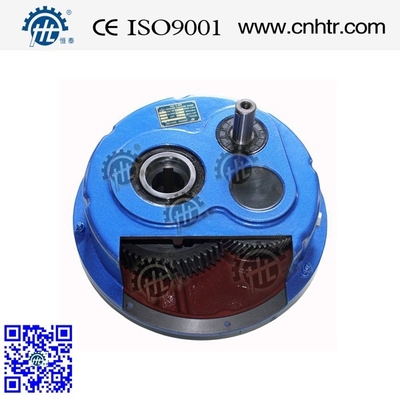

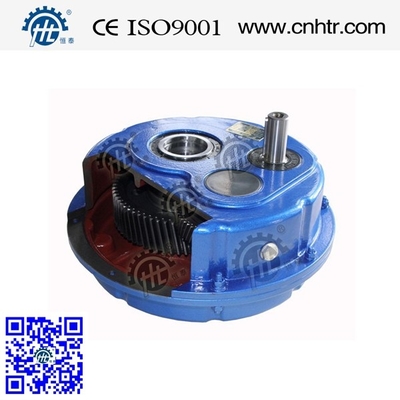

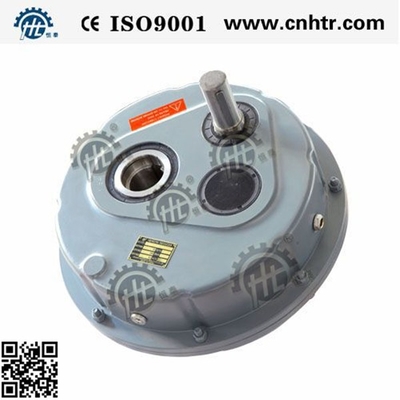

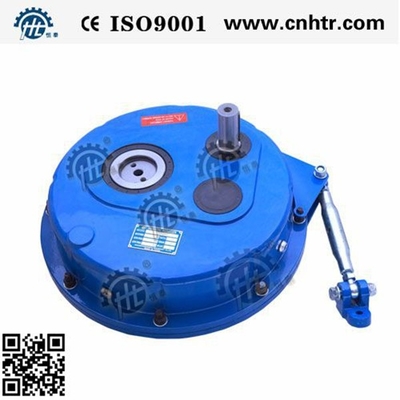

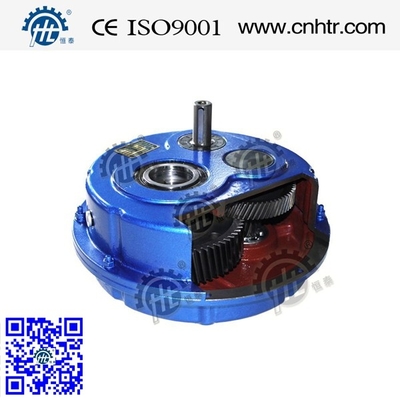

Product images:



TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod 0TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod 1



Dimention of HXG 60-60D:



TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod 2

Dimension of output shaft:

 TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod 3

Dimention of torque arm:

TA60-60D Shaft Mounted Speed Reducer Used for Conveyor Belt Ratio15/1 With Tie Rod 4
