Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm

  • Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm
  • Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm
  • Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm
Certification CE, ISO
Model Number Y2 series motor, HXG and HXGF shaft mounted conveyor gearbox
Minimum Order Quantity 5 pcs
Price USD50.00~USD2000.00 per pcs
Packaging Details Export used wooden box, 8-12 PCS/pallet.
Delivery Time 10~25 work days
Payment Terms T/T, L/C
Supply Ability 6000 PCS per month.

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Power 0.37~110 Kw Motor Poles 4 Poles, 6 Poles, 960~1800 Rpm
Voltage 380V ~ 660V Frequency 50~60 Hz
Gearbox Output Shaft Hub Bore 30~125 Mm Ratio 13，15，20，25，30
Gearbox Output Speed 30~120 Rpm Conveyor Speed 1.2~2 M/s
Highlight

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

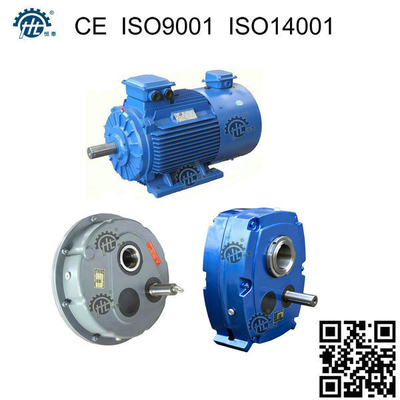

Conveyor gear motor and gearbox:


Motor types: 4 poles, 6 poles, 960-1800 rpm, standard foot mounted motor.

Gearbox type: shaft mounted gearbox speed reducer.
Gearbox ratio: 5, 13, 15, 20, 25, 30
Gearbox output shaft diameter: 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 100, 120, 125 mm


Conveyor Motor Y2-4 poles:


PowerShaft diameter for pulleyTechnical data
0.5 HP0.37 KW14 mm

Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm 0

Standard: 4 poles, 50~60Hz, 1400~1800rpm 3 phase,380v,IP55.

OEM:
According to different countries with different voltage: 220~660V.


1 HP0.75 KW19 mm
1.5 HP1.1 KW24 mm
2 HP1.5 KW24 mm
3 HP2.2 KW28 mm
4 HP3 KW28 mm
5.5 HP4 KW28 mm
7.5 HP5.5 KW38 mm
10 HP7.5 KW38 mm
15 HP11 KW42 mm
20 HP15 KW42 mm
25 HP18.5 KW48 mm
30 HP22 KW48 mm
40 HP30 KW55 mm
50 HP37 KW60 mm
60 HP45 KW60 mm
75 HP55 KW65 mm
100 HP75 KW75 mm
120 HP90 KW75 mm
150 HP110 KW80 mm
170 HP132 kw80 mm

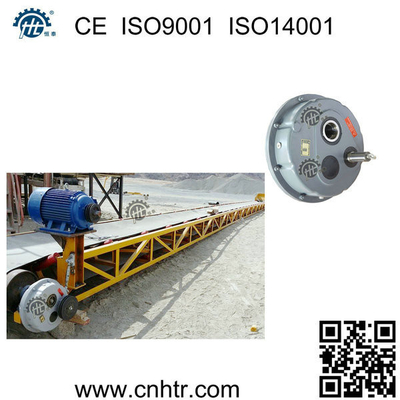

Conveyor gearbox HXG(TA):


No.ModelsShaft diameterRated powerRated torqueRatioPicture
1HXG 3535 mm2.2-5.5 kw420 N.m

5;
10;
12.5;
15;
20;
25;
30;

Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm 1
2HXG 4040-50 mm4-11 kw950 N.m
3HXG 4545-55 mm5.5-22 kw1400 N.m
4HXG 5050-60 mm11-37 kw2300 N.m
5HXG 6060-70 mm15-55 kw3600 N.m
6HXG 7070-85 mm22-75 kw5100 N.m
7HXG 8080-100 mm30-110 kw7000 N.m
8HXG 100100-120 mm45-160 kw11000 N.m
9HXG 125125-135 mm75-200 kw17000 N.m

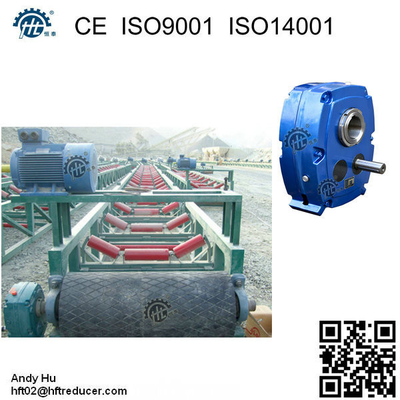

Conveyor gearbox HXGF(SMSR,SMR,HSM shaft mounted reducer):


No.ModelsShaft diameterRated powerRated torqueRatioPicture
1HXGF 3035 mm2.2-5.5 kw420 N.m

5;
10;
12.5;
15;
20;
25;
30;

Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm 2
2HXGF 4040-50 mm4-11 kw950 N.m
3HXGF 5045-55 mm5.5-22 kw1400 N.m
4HXGF 5550-60 mm11-37 kw2300 N.m
5HXGF 6560-70 mm15-55 kw3600 N.m
6HXGF 7570-85 mm22-75 kw5100 N.m
7HXGF 8580-100 mm30-110 kw7000 N.m
8HXGF 100100-120 mm45-160 kw11000 N.m





General business questions:
1). Replace products: Bonfiglioli TA, Fenner SMSR, Sumitomo HSM, Challenge SMSR, Dodge···.
2). Delivery time: 15 days.
3).Payment: TT30%, TT 70%, L/C, cash, others.
4). Shipment: Ningbo, Shanghai, any port in China.
5). Warranty: 12-18 months.



How to order it?

1). Confirmed requirements, like your power KW, output speed RPM, gear ratio··· (Buyer)
2). Choose model and send quotation/price (Seller)
3). Negotiate the price, delivery time, payment terms, and others. (Seller and buyer)
4). Confirmed order (Buyer)
5). Send PI/proforma invoice (Seller)
6). Send payment (Buyer)
7). Production, delivery, shipment documents (Seller)
8). Receive goods (Buyer)


Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm 3

Crusher Spares 5.5 7.5 11 15 22 KW 3 Phase Conveyor Motor Gearbox Speed Reducer Shaft Bore 30~125 Mm 4
