Parallel Shaft Helical Speed Reducer Gearbox For 3 Phase Electric Motor
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gearing Arrangement | Helical | Output Torque | 110~15300N.m |
|---|---|---|---|
| Rated Power | 0.12-200kw | Input Speed | 750-1800 Rpm |
| Output Speed | 9.5~385RPM | Ratio | 3.71~276.6 |
| Housing Material | Cast Iron | Input Form | Direct Connection With Motor, Flange For Mounting Motor, Solid Shaft |
| Output Form | Solid Shaft,hollow Shaft | Surface Hardness Of Gear | HRC58-62 |
| Transimission Stage | Single, Two, Three-stage | ||
| Highlight | helical speed reducer,helical bevel gearbox |
||
Product Description
About HF
Product Description
Parallel shaft mounted helical gear reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co., td, are the perfect solution when space is limited. The many different sizes and designs ensure that the Parallel shaft mounted helical gear reducer can be used in a wide variety of applications even under the most unfavorable conditions. Such as agriculture, telecommunications industry, food industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so on.

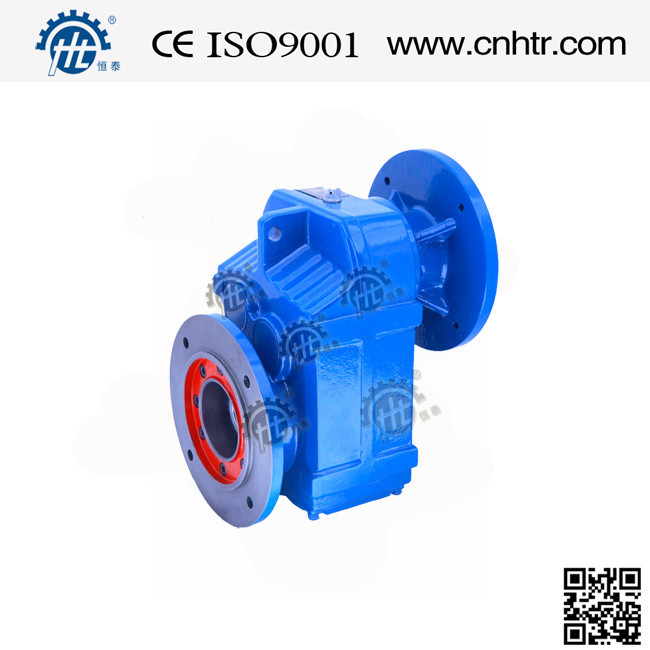

Photo of F parallel shaft helical gearbox with 3 phase electric motor
Specifications:
| Model | 37 | 47 | 57 | 67 | 77 | 87 |
| Structure | F,FA,FF,FAF,FAZ,FHZ | |||||
| Input Power KW | 0.12~3 | 0.12~4 | 0.12~5.5 | 0.18~7.5 | 0.37~18.5 | 0.75~22 |
| Transmission Ratio i | 3.71~129.8 | 5.01~189.2 | 5.26~193.8 | 3.98~174.7 | 4.34~199.4 | 4.06~276.6 |
| Allowed Torque Nm | 170 | 340 | 510 | 705 | 1280 | 2550 |
| Weight kgs | 14.5 | 20 | 38 | 61 | 100 | 165 |
| Model | 87 | 97 | 107 | 127 | 157 |
| Structure | F,FA,FF,FAF,FAZ,FHZ | ||||
| Input Power KW | 0.75~22 | 0.75~30 | 2.2~55 | 4~90 | 11~160 |
| Transmission Ratio i | 4.06~276.6 | 4.7~279.9 | 6.26~250.7 | 4.61~170.4 | 11.67~262.9 |
| Allowed Torque Nm | 2550 | 3670 | 6670 | 10200 | 15300 |
| Weight kgs | 165 | 290 | 450 | 770 | 1870 |
Product Benefits
1: Modular design, small volume and strong capacity of being overloaded.
2: Wide selection range for transmission ratios, many options of the motor combinations.
3: The efficiency can be up to as high as 98%, excellent function, small vibration and low noise.
4: Can output very low speed.
5: The box body is made of high strength cast iron
6: Convenient and low cost maintenance.
Applications
Our F Series Parallel shaft mounted helical gear reducer can be with roller as the power source of belt conveyor or lifting machine. With the characteristics of conveyor, high efficiency, simple structure, convenient installation and maintenance. It was widely used in postal, cenment, mining, tourism, food industry, etc.
