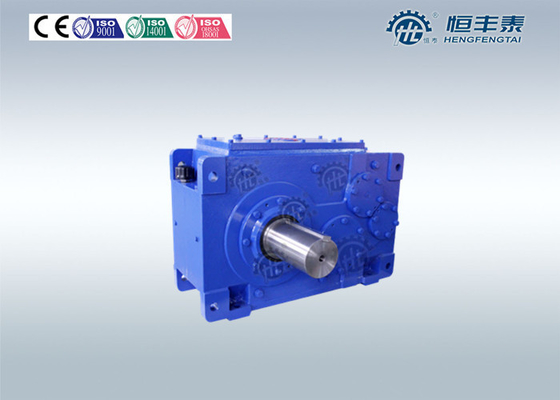

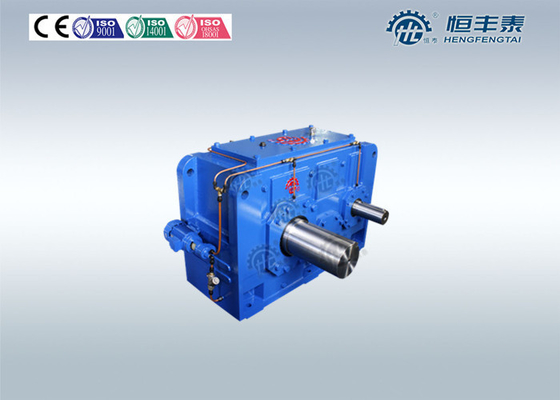

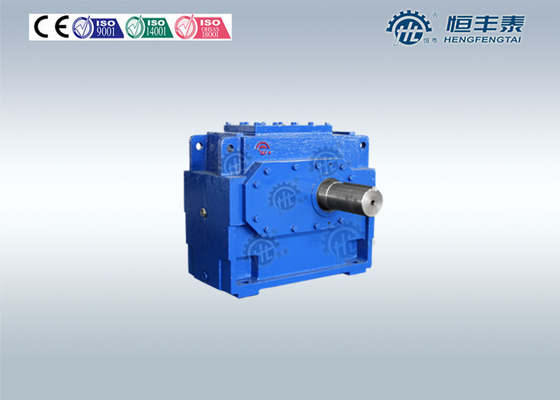

Conveyor Helical Two Stage Gear Reduction Gearbox for Electric Motor

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenhou city ,Zhejiang ,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number H.H
Minimum Order Quantity 5 PIECE
Price USD1000-100000
Packaging Details STRONG EXPORTING WOODEN CASE AND PALLETS
Delivery Time 40 days
Payment Terms T/T or LC
Supply Ability 100 pcs per month
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Conveyor Helical Two Stage Gear Reduction Gearbox for Electric Motor





Quick Details:


  • Gearing Arrangement: Helical



  • Output Torque: 450000 N.m



  • Rated Power: 1.1-5100KW



  • Input Speed: 750-1500 rpm



  • Output Speed: 1.67-1200RPM



  • Place of Origin: Zhejiang, China (Mainland)



  • Model Number: H1SH3-H4SH26



  • Brand Name: HENGTAI



  • Color: According to customer



  • Ratio: 1.25-450



  • Packing: Strong wooden cases for exporting



  • Output shaft: Solid or hollow output shaft



  • Accessories: cooling system, lubrication system



  • Output shaft diameter: 30-420MM





Other name:

Helical gear reducer applied for conveyor
parallel shaft mounted gear box
Progressive ratio helical shaft gear reducer



Description:

H. helical and bevel-helical gear reducer unit, similar to Flender H.B gearbox, big power and torque.

Widely used in Mining, smelting machine as power transmission.

Horizontal and vertical installation,single to four stage, available in 26 sizes.


Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft                                   H. Hollow Shaft                                 D.Hollow Shaft for Shrink Disk

H:Horizontal   V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000





Applications:

Bucket elevator drives

Separator drives

Water screw drives

Conveyor drives

Dryer section drives


Specification:


Item No.

iN

T2N(KN.m)

P1N(KW)




B2-4

5-11.2

6.1-6.2

41-185



B2-5

5-11.2

9.4

62-285



B2-6

6.3-14

12

63-289



B2-7

5-11.2

19

126-576



B2-8

6.3-14

23.8

126-573



B2-9

5-11.2

29.9

198-908



B2-10

6.3-14

38

201-915



B2-11

5-11.2

46-54

358-1397



B2-12

6.3-14

58.8-66.3

351-1416



B2-13

5-11.2

68.6-81.1

538-2082



B2-14

6.3-14

85.2-101

538-2052



B2-15

5-11.2

122-132

877-3704



B2-16

5.6-12.5

135-148

880-3662



B2-17

5.6-11.2

195

1295-4697



B2-18

7.1-12.5

230

1368-4376



B3-4

12.5-71

5.5-6.7

7-67



B3-5

12.5-71

9.4-11.6

11-114



B3-6

16-90

12-15.5

11-114



B3-7

12.5-71

17-21.7

25-206



B3-8

16-90

21.5-25.2

21-204



B3-9

12.5-71

28-35.7

35-339



B3-10

16-90

35.6-43.8

36-338



B3-11

12.5-71

52.4-63.5

62-636



B3-12

16-90

66.3-77.2

62-630



B3-13

12.5-71

79.5-90.7

94-965



B3-14

16-90

99.4-113

93-945



B3-15

12.5-71

132-153

159-1603



B3-16

14-80

148-173

161-1603



B3-17

12.5-71

195-200

208-2368



B3-18

14-80

230-240

223-2490



B3-19

12.5-71

250-300

312-3036



B3-20

14-80

295-345

321-3195



B3-21

12.5-71

340-420

437-4130



B3-22

14-80

405-470

438-4386



B3-23

20-71

560

583-4250



B3-24

22.4-80

640

596-4372



B3-25

20-71

800

833-4372



B3-26

22.4-80

900

838-4372






Competitive Advantage:

Modular design system Multi-purpose use of the housing and internal components.

Progressive ratio of sizes for optimum selection of sizes.

Improved noise level through grounded bevel gear teeth and noise-absorbing housings.
