Helical Bevel Gear Motor Right Angle Gear Speed Reducer CE / ISO 9001 HK Series

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name HENGTAI
Certification CE / ISO 9001
Model Number HK37-HK187
Minimum Order Quantity 1 piece
Price USD 200-2000 piece
Packaging Details 1 pcs packed in one small box, 7- 8 small boxes packed in one wooden crate.
Delivery Time 25-30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 piece per month
Product Details
Motor Connection Flange Or Direct Mounting Type Flange.Foot
Housing Material Iron Casting Lubrication Gear Oil
Transimission Stage Single, Two, Three-stage Customization Acceptable
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

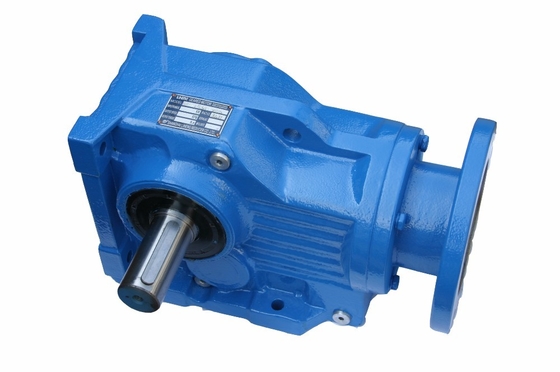

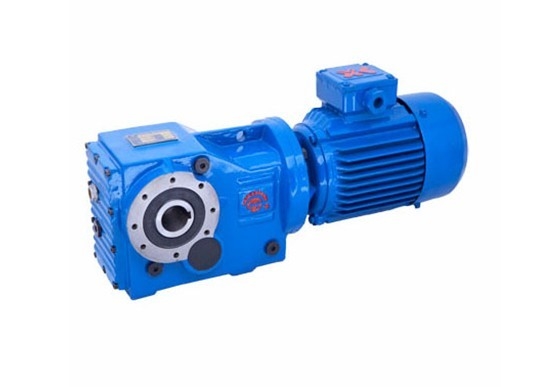

HK series helical bevel gear motor right angle gearbox speed reducer



Gear reducer power:



model 37 47 57 67 77 87 97 107 127 157 167 187
structure K,KA,KF,KAF,KAZ,KAT,KAB
input power 0.12-3 0.12-3 0.12-4 0.18-5.5 0.37-11 0.75-22 1.1-30 3-45 7.5-90 11-160 15-200 15-200
transmission ratio

4.09-

106.6

4.66-

131.7

4.68-

143.5

 7.1646.2

7.11-

192.7

7.42-

195.2

8.88-

176.5

8.72-1

47.2

8.6-

144.4

12.7-

151.1

17.3-

161

17.1-

180.7
allowed torque(Nm) 170 340 510 705 1320 2300 3670 6800 11050 15300 27200 42500
weight(kg) 12 22 30 37 63 94 145 275 420 680 1130 1870



Product Features:



1. High modularization design: May equip with various motor or other power input conveniently

2. Same machine type may equip with various power motor
3. Easy to realize the combination and junction between every machine type

4. Output very low rotary speed

5. High strength, compact: The box body is made of high strength cast iron
6. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high

7. Low noise, High efficiency, Long lifespan



Applications:



Material handling

Conveyor belts

Ball mills

Wire drawing machines

Food industry

Agitators

Printing presses

Belt filter presses

Shredders/compacters

Chip conveyors



Company Information:



HENGFENGTAI PRECISION MACHINERY CO., LTD was established in 1991, with the development of more than 23 years, we have accomplished the following achievements:



Main product: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.



R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.



Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 500 personnel, and advanced equipments & machines.



package:



Helical Bevel Gear Motor Right Angle Gear Speed Reducer CE / ISO 9001 HK Series 0



Certification:



Helical Bevel Gear Motor Right Angle Gear Speed Reducer CE / ISO 9001 HK Series 1

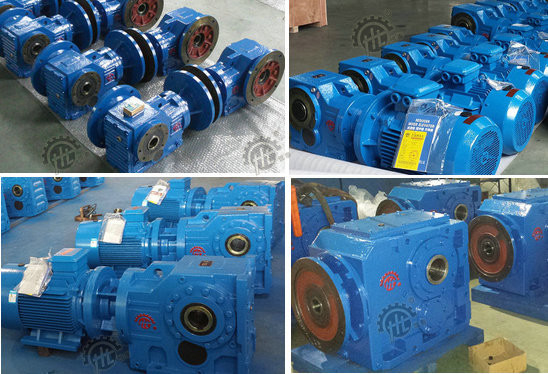

Workshop & Factory:
