Bevel Hard Tooth Face Speed Reducer Gear Box with Eletric Motor Solid shaft

  • Bevel Hard Tooth Face Speed Reducer Gear Box with Eletric Motor Solid shaft
Model Number HR37-HR167
Minimum Order Quantity 1 piece
Price USD 200-2000 piece
Packaging Details 1 pcs packed in one small box, 7- 8 small boxes packed in one wooden crate.
Delivery Time shipped in 25-35 days after payment
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 pieces per month
Product Details
Ratio 3.37 ~ 224.6 Output Form Solid Shaft
Input Form Direct Connection With Motor, Flange For Mounting Motor, Solid Shaft Output Shaft Diameter 25~120 Mm
Color According To Customer Certificates CE, ISO9001, ISO14001
Highlight

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

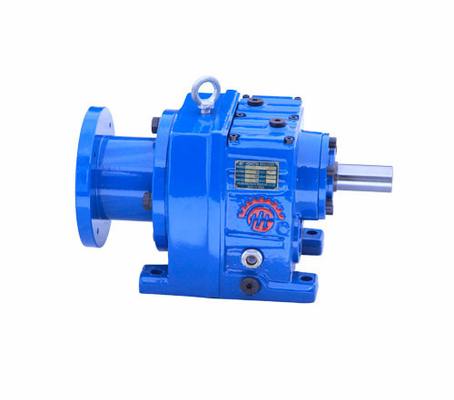

HR Serie Bevel Hard-Tooth-Face Speed Reducer Gear Box with Eletric Motor



Gear Reducer Power:



Model 27 37 47 57 67 77
Structure HR,HR..F,HRF
Input power 0.12-3 0.12-3 0.12-5.5 0.12-7.5 0.12-7.5 0.18-11
Ratio 3.37-136 3.4-133.3 3.87-182.6 4.32-183.2 4.32-180.7 5.28-200.9
Permissible torque 110 170 255 380 510 700
weight 6.2 9.4 11 20 28 40
Model 87 97 107 137 147 167
Structure HR,HR..F,HRF
Input power 0.55-22 0.55-37 2.2-55 5.5-75 11-110 11-160
Ratio 5.33-245.7 4.52-280.6 4.98-255.4 5.22-223.2 4.93-162.1 10.43-224.6
Permissible torque 1320 2550 3670 6800 11050 15300
weight 70 112 169 245 440

770





Specification:



1: Compact design, small volume, nice appearance and strong overloaded capacity.

2: percise stage division, wide selection range.

3: High efficiency, low energy consumption, excellent function, small vibration, and low noise.

4: All - purpose use, convenient, low cost maintenance.

5: HR series gear units can match all kinds of motors, mounting position, structure projects.

6: Using new seal device for good protection, strong adaptability, capable of working continually in corrosive or damp environment.

7: With small volume, helical gear units achieves the output torque range of 69-18000NM, and output power as much as 160KW.



Company Information:



HENGFENGTAI PRECISION MACHINERY CO., LTD was established in 1991, with the development of more than 23 years, we have accomplished the following achievements:



Main product: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.



R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.



Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 500 personnel, and advanced equipments & machines.



Package:



Bevel Hard Tooth Face Speed Reducer Gear Box with Eletric Motor Solid shaft 0



Quality certificate:



Bevel Hard Tooth Face Speed Reducer Gear Box with Eletric Motor Solid shaft 1



Fcatory:



Bevel Hard Tooth Face Speed Reducer Gear Box with Eletric Motor Solid shaft 2
