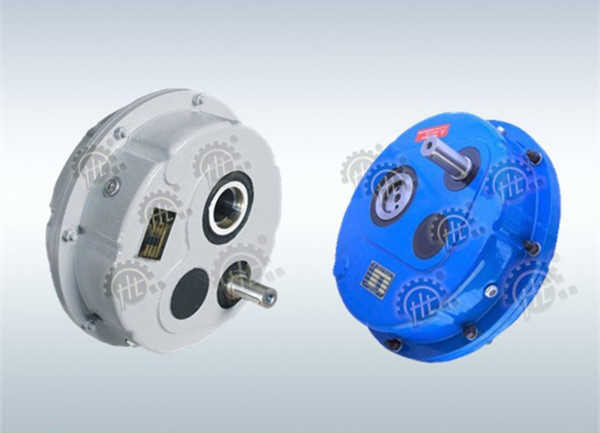

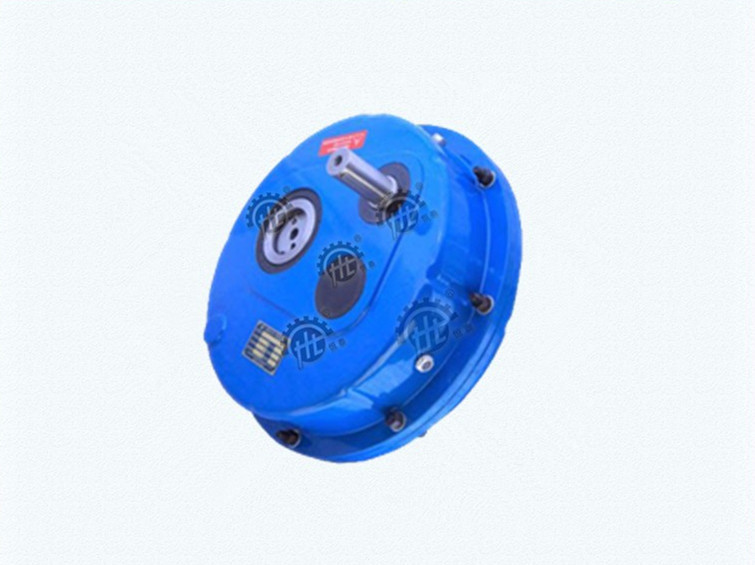

HXG TA Helical Gear Shaft Mounted Speed Reducer / Speed Increaser Gearbox

  • img.alt
  • img.alt
Place of Origin China
Brand Name HENGTAI
Model Number HXG
Minimum Order Quantity 1piece
Price USD100-2000piece
Packaging Details standard wooden cases/fumigation wooden box
Delivery Time shipped in 30 days after payment
Payment Terms L/C, T/T, Western Union
Supply Ability 2000 pieces per mouth
Product Details
Output Speed 25-300RPM Input Speed 750-1500RPM
Rated Power 1.1-193KW Calculated Torque 180-17000N.m
Mounting Position Shaft Mounted Material For Gears Low-carbon Alloy
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Description:



HXG series shaft mounted gear reducer, made by HENGFENGTAI PRECISION MACHINERY CO.,LTD, was wildly used in mechanical transmission fields such as agriculture, telecommunications industry, food industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so on.



Designing Features:



1:Use low-carbon alloyed steel cementation processing completely.

2:The gear and the gear shft precision is high.

3:The volume small,but the torque is big.



Maintenance:



After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.

Pls do not mix the mineral oil and synthetic oil.

pls check the oil level in regular time.



Permitted torque:



HXG30 HXG35 HXG40 HXG45 HXG50 HXG60 HXG70 HXG80 HXG100 HXG125
180Nm 420Nm 950Nm 1400Nm 2300Nm 3600Nm 5100Nm 7000Nm 11000Nm 17000Nm



Products:



HXG TA Helical Gear Shaft Mounted Speed Reducer / Speed Increaser Gearbox 0



Company information:

Company name: HENGFENGTAI PRECISION MACHINERY CO.,LTD

Founding year: 1991

Quantity of employees: 500 employees

Factory square: 50000square meters
Main products: With Gear reducer series products as leading, extend to Electrolytic aluminum equipments, mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.

Qualifications of quality: CE, ISO9001
