Cast Iron Shaft Mounted Gear Reducer For industry Belt Conveyor Machine

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name HENGTAI
Certification ISO9001/CE
Model Number HXGF30-HXGF100
Minimum Order Quantity 1 piece
Price USD 200-2000 per piece
Packaging Details standard wooden cases/fumigation wooden box
Delivery Time 25-30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 pieces per month
Product Details
Input Form Solid Shaft Output Form Hollow Shaft
Housing Material Cast Iron Application Crusher, Conveyor
Mounting Type Shaft Mouted Output Shaft Dimater 30-120MM
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

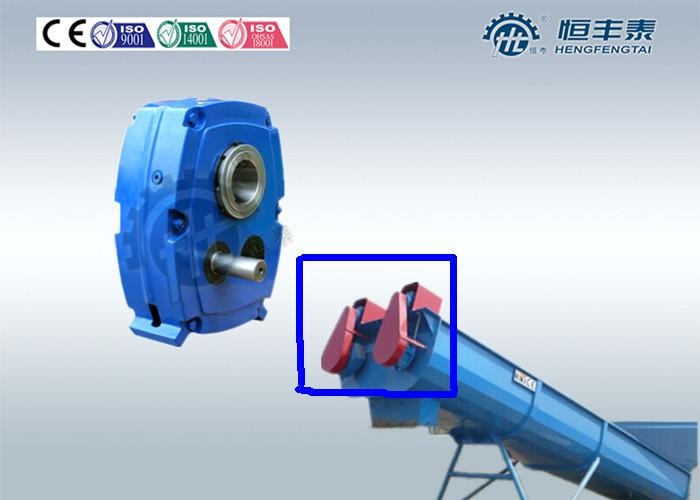

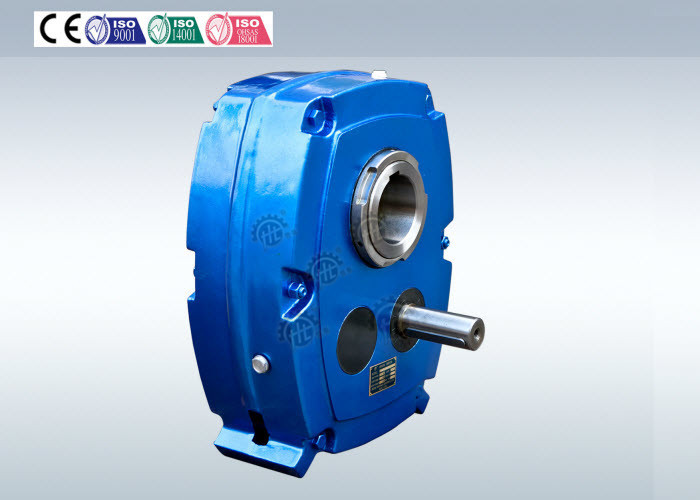

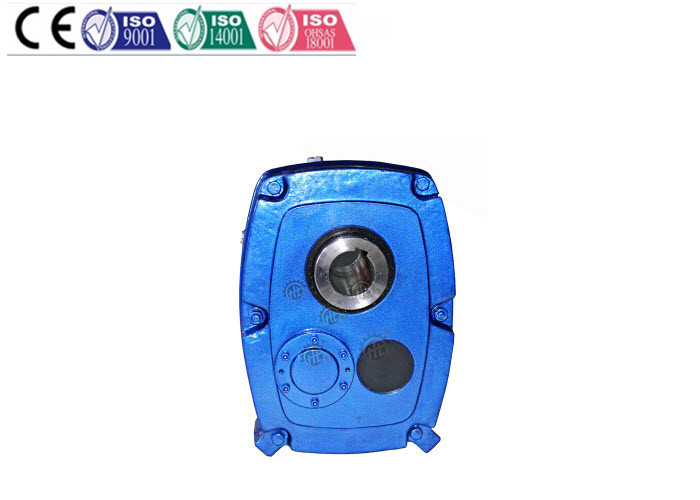

HXGF series shaft mounted speed reducer for Belt conveyor machine



Shaft Mount Reducer Dimensions:



Dimensions(mm) HXGF Size
HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Standard 30 40 50 55 65 75 85 100
Alternative 40 50 55 65 75 85 100 120
Input Shaft Keyway 6*3.5*50 6*3.5*59 8*4*63 8*4*70 10*5*70 12*5*90 14*5.5*90 16*6*100



Products benefits:



1) All torque arms/fulcrums are plated to eliminate them being rusted in use.
2) The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is safe from contamination.
3) The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.
4) Input shaft front bearing is a roller bearing as it takes in more radial load from the belt pressure.
5) Breather plugs are extended so that the dust does not clog the breather hole.
6) All oil seals imported from Taiwan.
7) Our gear units now have higher load capacity as the gears have been redesigned.
8) All gears are case carburised to a casedepth and ground inhouse.
9) All gear units are machined on a CNC machining center so are very accurate in alignment.
10) Finish of all gear units are far superior to any other brand being sold out of India.

11) The shaft mounts are available with keyed hollow shafts or hollow taper bores with taper clamps.



Applications:



1. Argriculture

2. Food industry

3. Tobacco industry

4. Automotive industry

5. Cement industry

6. Mining industry



Company Information:



HENGFENGTAI PRECISION MACHINERY CO., LTD was established in 1991, with the development of more than 23 years, we have accomplished the following achievements:



Main product: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.



R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.



Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 500 personnel, and advanced equipments & machines.
