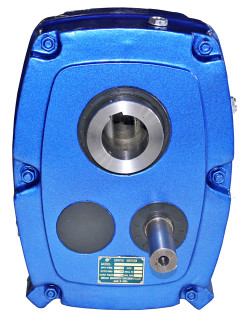

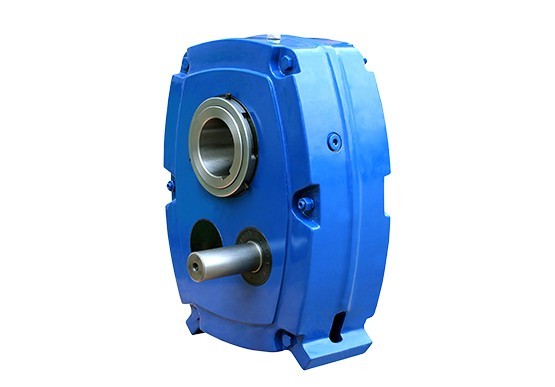

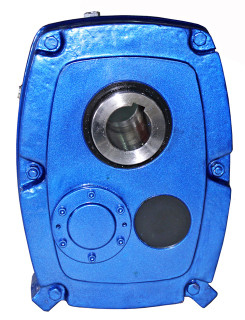

CE ISO9001 Shaft Mounted Gearbox With Hollow Output Shaft Solid Input Shaft

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name HENGTAI
Certification CE / ISO9001
Model Number HXGF30-HXGF100
Minimum Order Quantity 1 piece
Price USD 200 -2000 per piece
Packaging Details standard wooden cases/fumigation wooden box
Delivery Time 25-30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 pieces per month
Product Details
Mounting Type Shaft Mouted Input Form Solid Shaft
Output Form Hollow Shaft Color According To Customer
Accessoroes Torque Arm, Back Stop Certificates CE, ISO9001
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

HXGF series Shaft mounted gear reducer with hollow output shaft



Model selection table:



Ratio:5:1

Model HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Output(RPM) 100-400 100-400 100-400 100-400 100-400 100-400 100-400 100-400
Power Rating(KW) 2.68-7.14 4.2-9.66 6.62-15.65 10.29-24.57 15.12-35.91 25.2-59.9 36.2-81.9 62.2-134.2
Permissible torque(Nm) 256 401 632 983 1444 2407 3457 5940



Ratio:13:1 and 20:1

Model HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Output(RPM) 10-115 10-115 10-115 10-115 10-115 10-115 10-115 10-115
Power Rating(KW) 0.29-3.11 0.49-4.62 0.82-7.81 1.25-11.55 1.97-17.01 3.11-27.09 4.9-40.7 7.8-60.5
Permissible torque(Nm) 277 468 783 1194 1881 2970 4680 7449



Maintenance:



After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.

Please do not mix the mineral oil and synthetic oil.





Products benefits:



1) All torque arms/fulcrums are plated to eliminate them being rusted in use.
2) The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is safe from contamination.
3) The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.
4) Input shaft front bearing is a roller bearing as it takes in more radial load from the belt pressure.
5) Breather plugs are extended so that the dust does not clog the breather hole.
6) All oil seals imported from Taiwan.
7) Our gear units now have higher load capacity as the gears have been redesigned.
8) All gears are case carburised to a casedepth and ground inhouse.
9) All gear units are machined on a CNC machining center so are very accurate in alignment.
10) Finish of all gear units are far superior to any other brand being sold out of India.

11) The shaft mounts are available with keyed hollow shafts or hollow taper bores with taper clamps.



Company information:



Company name: HENGFENGTAI PRECISION MACHINERY CO.,LTD



Founding year: 1991



Quantity of employees: 500 employees



Factory square: 50000 square meters


Main products: With gear reducer and gearbox products as leading, extend to Electrolytic aluminum equipments, Mixing equipments, Precision transmission equipments, Environmental protection equipments and so on large machinery equipments.



Qualifications of quality: CE,ISO9001



package:



CE ISO9001 Shaft Mounted Gearbox With Hollow Output Shaft Solid Input Shaft 0



Factory:



CE ISO9001 Shaft Mounted Gearbox With Hollow Output Shaft Solid Input Shaft 1
