Bevel Gear Reduce For Sewing Machine

  • Bevel Gear Reduce For Sewing Machine
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number HB Series Helical Gear Reducer
Minimum Order Quantity 1 Pieces
Price USD 1000-17000
Packaging Details Wooden Case, Standard Export Package
Delivery Time 35-40 Days
Payment Terms T/T; L/C
Supply Ability 500 Pieces Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gear Bevel Reduction Staage 2 Stage
Model B2hh7
Highlight

motor speed reducer

,

high speed gearbox
Leave a Message
Product Description

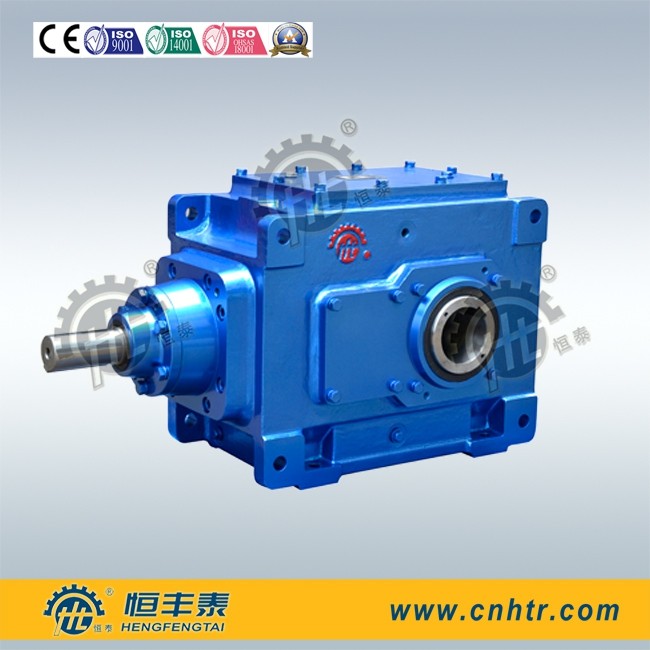

Bevel Gear Reducer B2HH7 With Hollow Shaft For Mining Powder Milling Machine





Quick Details:





Trade Mark



 Hengtai Gearbox



Mounting Position



 Foot/ hollow(keyed )



Output Speed



 1.7-1200 Rpm



Output Torque



 2-900 KN.M



Rated Power



 4.3-450 Kw



Transmission Ratio



 1.25-450



Gear Arrangement



 Helical Gear Reducer







Description:



Large Torque reducer covers a torque range of 2300-900000 N.m. Parallel shaft design of





Material:


Housing:     HT250 cast iron




Bearing:      42CrMo




Gear:            20CrMnTi H,



high grade alloy with carburization,



surface hardness: 58-62HRC,



center hardness: 33-48HRC


Grinding precision grade: ISO1328-1: 1995 class 5-6,



Surface finish: 0.8, carburization depth: 0.6-1.5mm




Specifications:

Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft                                   H. Hollow Shaft                                 D.Hollow Shaft for Shrink Disk

H:Horizontal   V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000





Application:

  • Conveyor systems
  • Cooling towers and compressors
  • Extruders
  • Agitators (mixers)
  • Cement industry
  • Crane systems
  • Sewage plants
  • Mining
  • Forestry and paper industry
  • Sugar industry
  • Steel industry
