2 Stage Bevel Gear Reducer Ratio 12.5 to 1 Mining Machine Roller Crushing

  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengtai
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number HB Series Helical Gear Reducer
Minimum Order Quantity 1 Pieces
Price USD 1000-17000
Packaging Details Wooden Case, Standard Export Package
Delivery Time 35-40 Days
Payment Terms T/T; L/C
Supply Ability 100 Pieces Per Month
Product Details
High Light

shaft mounted gear reducer

,

high speed gearbox
Leave a Message
Product Description

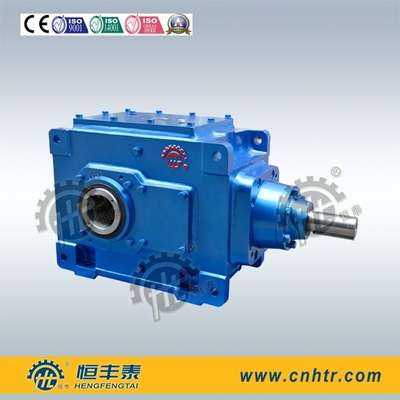

2 Stage Bevel Gear Reducer Ratio 12.5 to 1 Mining Machine Roller Crushing

Quick Details:


Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft                                   H. Hollow Shaft                                 D.Hollow Shaft for Shrink Disk

H:Horizontal   V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000



Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade alloy with carburization, surface hardness: 58-62HRC,
center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surface finish: 0.8,
carburization depth: 0.6-1.5mm
Bearing: 42CrMo



Specifications:

Item No.

iN

T2N(KN.m)

P1N(KW)




B2-4

5-11.2

6.1-6.2

41-185



B2-5

5-11.2

9.4

62-285



B2-6

6.3-14

12

63-289



B2-7

5-11.2

19

126-576



B2-8

6.3-14

23.8

126-573



B2-9

5-11.2

29.9

198-908



B2-10

6.3-14

38

201-915



B2-11

5-11.2

46-54

358-1397



B2-12

6.3-14

58.8-66.3

351-1416



B2-13

5-11.2

68.6-81.1

538-2082



B2-14

6.3-14

85.2-101

538-2052



B2-15

5-11.2

122-132

877-3704



B2-16

5.6-12.5

135-148

880-3662



B2-17

5.6-11.2

195

1295-4697



B2-18

7.1-12.5

230

1368-4376



B3-4

12.5-71

5.5-6.7

7-67



B3-5

12.5-71

9.4-11.6

11-114



B3-6

16-90

12-15.5

11-114



B3-7

12.5-71

17-21.7

25-206



B3-8

16-90

21.5-25.2

21-204



B3-9

12.5-71

28-35.7

35-339



B3-10

16-90

35.6-43.8

36-338



B3-11

12.5-71

52.4-63.5

62-636



B3-12

16-90

66.3-77.2

62-630



B3-13

12.5-71

79.5-90.7

94-965



B3-14

16-90

99.4-113

93-945



B3-15

12.5-71

132-153

159-1603



B3-16

14-80

148-173

161-1603



B3-17

12.5-71

195-200

208-2368



B3-18

14-80

230-240

223-2490



B3-19

12.5-71

250-300

312-3036



B3-20

14-80

295-345

321-3195



B3-21

12.5-71

340-420

437-4130



B3-22

14-80

405-470

438-4386



B3-23

20-71

560

583-4250



B3-24

22.4-80

640

596-4372



B3-25

20-71

800

833-4372



B3-26

22.4-80

900

838-4372





Products benefits:

Modular design system Multi-purpose use of the housing and internal components.
Progressive ratio of sizes for optimum selection of sizes.
Improved noise level through grounded bevel gear teeth and noise-absorbing housings.


Application:

  • Conveyor systems
  • Cooling towers and compressors
  • Extruders
  • Agitators (mixers)
  • Cement industry
  • Crane systems
  • Sewage plants
  • Mining
  • Forestry and paper industry
  • Sugar industry
  • Steel industry
