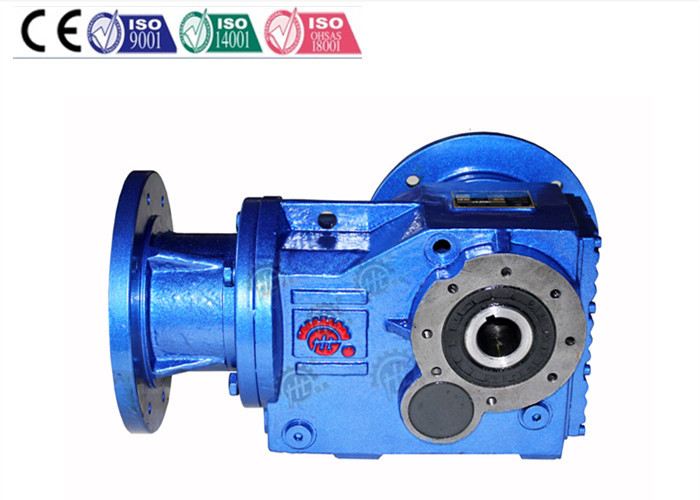

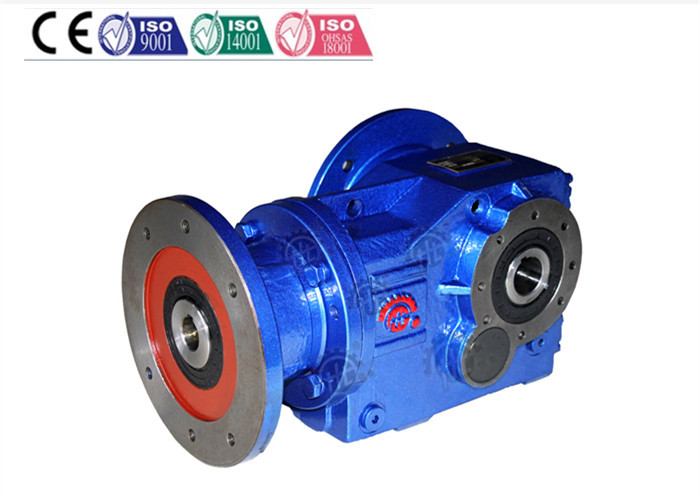

Industrial Bevel Gear Reducer B5 Install For Mobile Crusher Conveyor

Industrial Bevel Gear Reducer B5 Install For Mobile Crusher Conveyor





Quick Details



Gearing Arrangement: bevel gear



Output Torque: 170~ 42500N.m



Rated Power: 0.12~ 200KW



Input and output Speed: according related parameter list



Place of Origin: Zhejiang, China( Mainland)



Model Number: HK series



Brand Name: HENGTAI



Color: According to customer



Ratio: 4.09~ 195.2



Mounting position: foot- mounted and flange-mounted



Material for box: Cast Iron



Packing: Standard Fumigation Wooden





Descriptions:



The K series bevel gear reducer of right angle  is the first product to prove equally good in



regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.



We have test the K series of right angle gearmotors after 50,000 operating hours, the result showed that



the K series of right angle gearmotors do not reveal any noticeable wear.



Our K series of right angle gearmotors do not have any thermal restrictions because of optimum lubrication



compact and space-saving design low friction.





Your benefits:



1.     High power density



2.     Long service life



3.     Multi-stage gear unit for low output speeds



4.     Two-stage or three-stage versions



5.      Same reducer as SEW K series





Specification:



model	37	47	57	67	77	87
Structure	K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW	0.12~3	0.12~3	0.12~4	0.18~5.5	0.37~11	0.75~22
Transmission Ratio   i	4.09~106.6	4.66~131.7	4.68~143.5	7.1~646.2	7.11~192.7	7.42~195.2
Allowed Torque  Nm	170	340	510	705	1320	2300
Weight   kgs	12	22	30	37	63	94



model	97	107	127	157	167	187
Structure	K,KA,KF,KAF,KAZ,KAT,KAB
Input Power KW	1.1~30	3~45	7.5~90	11~160	15~200	15~200
Transmission Ratio   i	8.88~176.5	8.72~147.2	8.6~144.4	12.7~151.1	17.3~161	17.1~180.7
Allowed Torque  Nm	3670	6800	11050	15300	27200	42500
Weight   kgs	145	275	420	680	1130	1870



Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output





Applications:



Material handling



Conveyor belts



Ball mills



Wire drawing machines



Food industry



Agitators



Printing presses



Belt filter presses



Shredders/compacters



Chip conveyors







Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.



The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service insti

















Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.
