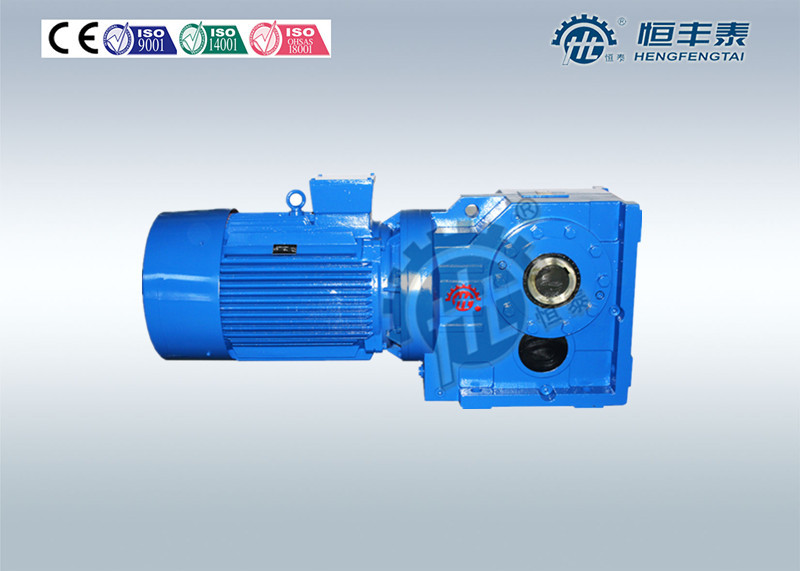

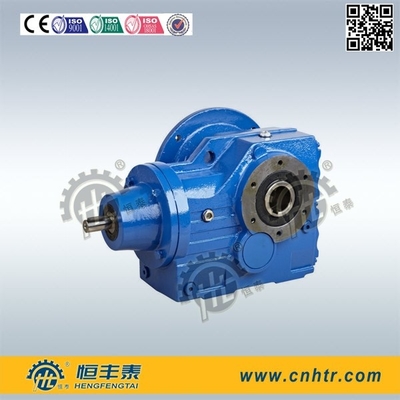

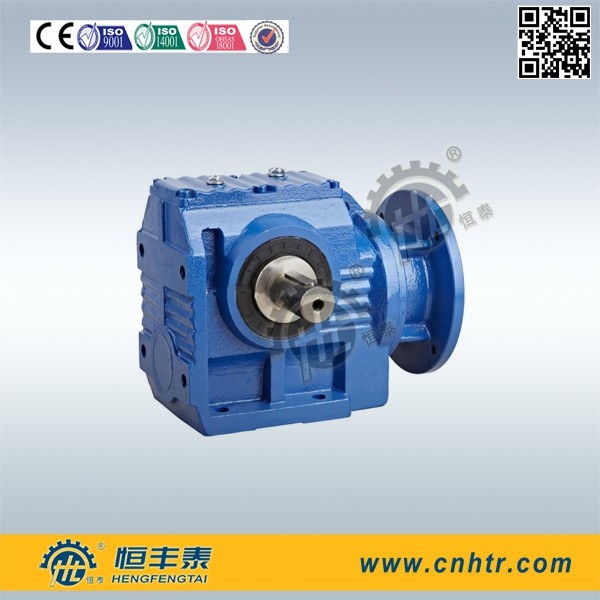

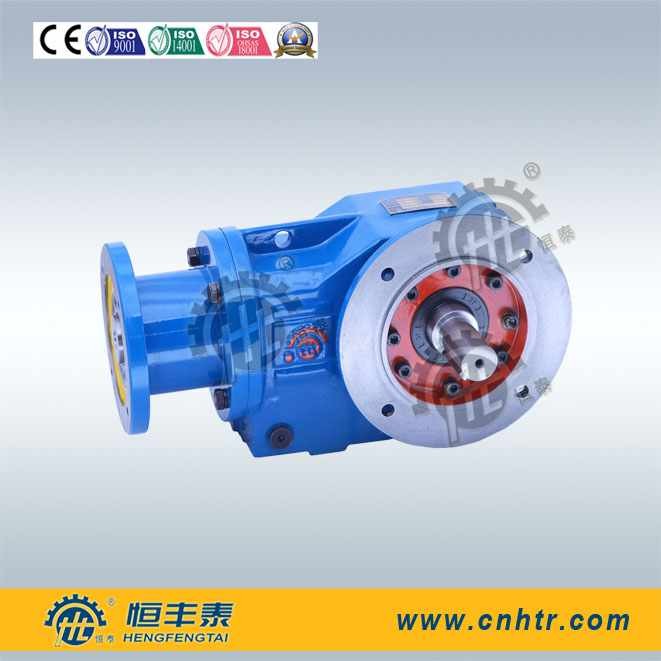

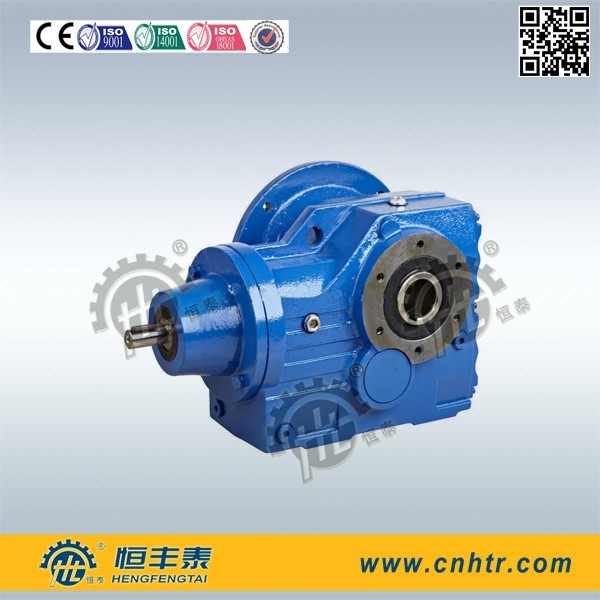

K37~ K187 0.37~200KW Spiral right angle Bevel Gearbox Gear Speed Reducer

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai Reducer
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity 1PIECES
Price USD200-USD5000 / PCS
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-30 days
Payment Terms T/T or LC
Supply Ability 1200 PCS PER MONTH
Product Details
Used Power 0.37~200 KW Torque 180~42500 N.m
Input Speed 750~1800 Rpm Ratio 4~180
Output Speed 5~400 Rpm Output Shaft Solid Or Hollow Shaft
Shaft Diameter 25~180 Mm
High Light

motor speed reducer

,

high speed gearbox
Leave a Message
Product Description

K37~K187 0.37~200KW Spiral right angle Bevel Gearbox Gear Speed Reducer:





Quick Details



Gearing Arrangement: bevel gear



Output Torque: 170~ 42500N.m



Rated Power: 0.12~ 200KW



Input and output Speed: according related parameter list



Place of Origin: Zhejiang, China( Mainland)



Model Number: HK series



Brand Name: HENGTAI



Color: According to customer



Ratio: 4.09~ 195.2



Mounting position: foot- mounted and flange-mounted



Material for box: Cast Iron



Packing: Standard Fumigation Wooden





Descriptions:



The K series bevel gear reducer of right angle  is the first product to prove equally good in



regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.



We have test the K series of right angle gearmotors after 50,000 operating hours, the result showed that



the K series of right angle gearmotors do not reveal any noticeable wear.



Our K series of right angle gearmotors do not have any thermal restrictions because of optimum lubrication



compact and space-saving design low friction.





Specification:



           model

37

47

57

67

77

87

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870



Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output



Applications:



Material handling



Conveyor belts



Ball mills



Wire drawing machines



Food industry



Agitators



Printing presses



Belt filter presses



Shredders/compacters



Chip conveyors





Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.
