Dual Shaft Helical Gear Reducer R37 With Ratio , Worm Gear Speed Reducer

  • Dual Shaft Helical Gear Reducer R37 With Ratio , Worm Gear Speed Reducer
  • Dual Shaft Helical Gear Reducer R37 With Ratio , Worm Gear Speed Reducer
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HR series
Minimum Order Quantity 5 pcs
Price USD120-2300
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 30 days
Payment Terms T/T or LC
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Hr37 Apply Food Machine
Shaft Solid Power 3 Kw
Highlight

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

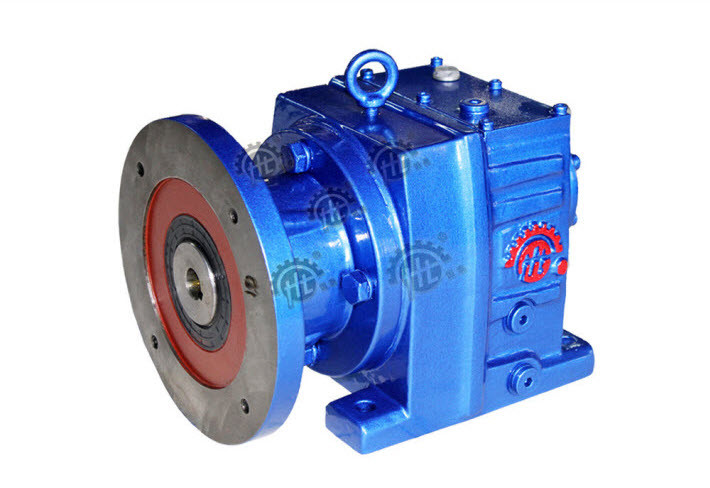

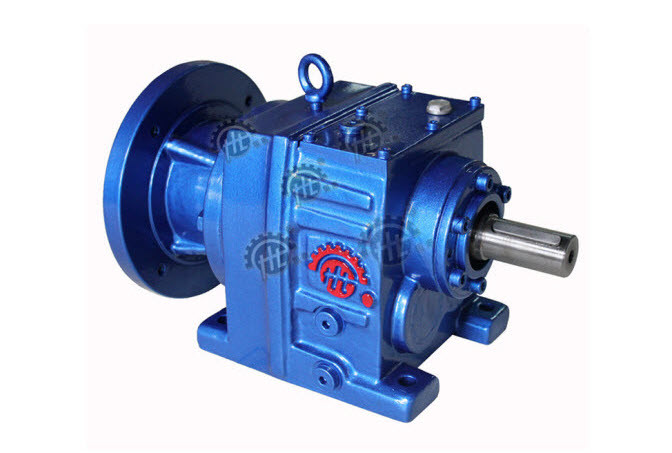

Dual Shaft Helical Gear Reducer R37 With Ratio , Worm Gear Speed Reducer





Quick Details



Helical Gear Box

       For R gear box, the boxes are cast iron of grey iron 250.

the gears are made of high-quality alloy steel 20 Crmnti, are treated with surface hardening and gear grouned Hrc58-62

and the key parts are imported. The whole geared motors are small in volume,

with great load-carrying capacity,steady running, low noise and high efficiency.





Descriptions:



Power

0.12kw

0.18kw

0.25kw

0.37kw

0.55kw

0.75kw

1.1kw

1.5kw

2.2kw

3kw

4kw

5.5kw

7.5kw

11kw

15kw

18.5kw

22kw

30kw

37kw

45kw

55kw

75kw

90kw

110kw

132kw

160kw





Torque

85N.m-18000N.m

Ratio

1.4-28000

Color

Chinese Red or as clients' requirement

Material

Nodular Cast Iron or as clients' requirement

Packing

Plywood Carton Box or as clients' requirement

Type

Rx 57

Rx 67

Rx 77

Rx 87

Rx 97

Rx107



Weight

9kg

15.4kg

25.3kg

42.9kg

77kg

110kg



Type

R27

R37

R47

R57

R67

R77

R87

Weight

6.2kg

9.4kg

11kg

20kg

28kg

40kg

70kg

Type

R97

R107

R137

R147

R167





Weight

112kg

169kg

245kg

4400kg

7700kg





Mounting Methods

Foot Installation



Flange Installation





Your benefits:

  • Monoblock housing design,
  • Wide ratio, torque range and two or three stages can be in same housing,
  • Reduction can be increased up to six stages,
  • Standard IEC B5 or B14 motor connection flanges,
  • Electromagnetic brake option,
  • Long life bearings,
  • GG20 and GGG40 cast iron housings,
  • 58-62 HRc hardened and grinded gears.



Specification:



The input powerpermissible torque and weight list of HR reducer:



Model

27

37

47

57

67

77

Structure form

HRHR..FHRF

Input power

0.12-3

0.12-3

0.12-5.5

0.12-7.5

0.12-7.5

0.18-11

Ratio

3.37-136

3.4-133.3

3.87-182.6

4.32-183.2

4.32-180.7

5.28-200.9

Permissible torque

110

170

255

380

510

700

weight

6.2

9.4

11

20

28

40

Model

87

97

107

137

147

167

Structure form

HRHR..FHRF

Input power

0.55-22

0.55-37

2.2-55

5.5-75

11-110

11-160

Ratio

5.33-245.7

4.52-280.6

4.98-255.4

5.22-223.2

4.93-162.1

10.43-224.6

Permissible torque

1320

2550

3670

6800

11050

15300

weight

70

112

169

245

440

770





Applications:



       Gear Box's Usage Field





Gear Box's Usage



1

Metallurgy







1

Agitator



2

Mine







2

Blast fan



3

Machine







3

Hoister



4

Energy







4

Compressor

5

Transportation





5

Petroleum industry

6

Water Conserbancy





6

Air Compressor

7

Tomacco







7

Crusher



8

Pharmacy







8

Plastic extruder

9

Printing Package





9

Conveyer



10

Chemical industry





10

Textile indutry







Dual Shaft Helical Gear Reducer R37 With Ratio , Worm Gear Speed Reducer 0



Dual Shaft Helical Gear Reducer R37 With Ratio , Worm Gear Speed Reducer 1
