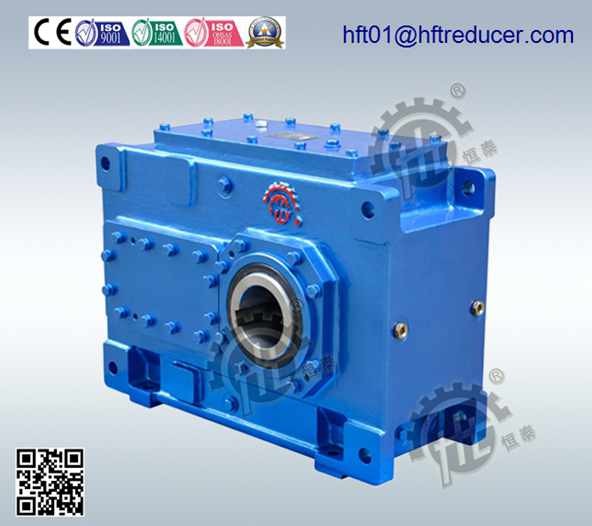

Hollow Shaft Helical Gear Reducer Conveyor Drives High Reduction

  • Hollow Shaft Helical Gear Reducer Conveyor Drives High Reduction
  • Hollow Shaft Helical Gear Reducer Conveyor Drives High Reduction
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number H.B
Minimum Order Quantity 5 pcs
Price USD1000-100000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 40 Days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shaft Hollow Shaft Rotor Width 850-2000mm
Rotor Diameter 457mm Blade SKD11/D2
Blade SKD11/D2 Applications Conveyor Drives
Product Name Helical Gear Reducer
Highlight

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Hollow Shaft Helical Gear Reducer Conveyor Drives High Reduction



Quick Details:

  • Gearing Arrangement: Helical
  • Output Torque: 450000 N.m
  • Rated Power: 1.1-5100KW
  • Input Speed: 750-1500 rpm
  • Output Speed: 1.67-1200RPM
  • Place of Origin: Zhejiang, China (Mainland)
  • Model Number: H1SH3-H4SH26
  • Brand Name: HENGTAI
  • Color: According to customer
  • Ratio: 1.25-450
  • Mounting position: foot mounted
  • Material for box: cast iron
  • Packing: Strong wooden cases for exporting
  • Output shaft: Solid or hollow output shaft
  • Accessories: cooling system, lubrication system
  • Output shaft diameter: 30-420MM


Other name:

Helical gear reducer applied for conveyor
parallel shaft mounted gear box
Progressive ratio helical shaft gear reducer


Description:

H.H series high power helical gear reducer, similar to Flender H.B gearbox, big power and torque.


Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,

H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26


H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,

H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26


H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,

H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26





Applications:

Bucket elevator drives

Separator drives

Water screw drives

Conveyor drives

Dryer section drives


Specification:


Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft
H. Hollow Shaft
D. Hollow Shaft for Shrink Disk

H: Horizontal
V: Vertical
M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000





Hollow Shaft Helical Gear Reducer Conveyor Drives High Reduction 0

Hollow Shaft Helical Gear Reducer Conveyor Drives High Reduction 1



About Hengtai reducer



Facilities

550,000 square feet manufacturing facilities

400 employees

Major US & European OEM customers

ISO 9001:2000 certificate

ISO 14001 Certificate

GB/T 28000 Certificate

Over two decades of planetary reducer production experience

5,000 square feet warehouse in Los Angeles, California USA



Major equipment include

8 sets CNC Gear Hobbing machine

10  sets CNC Grinding Machine

6 sets CNC Borning Machine

10 sets CNC Drilling Machine

200 sets other CNC Machines



Welcome to visit us at any time.
