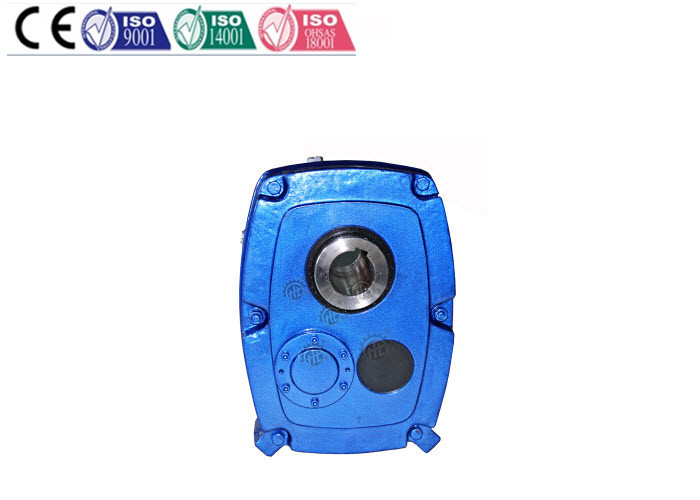

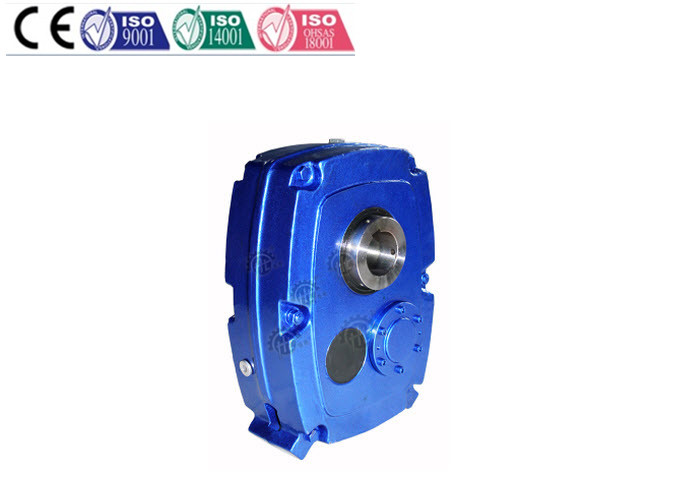

Metric Shaft Mounted Speed Reducer HXGF Series , Helical Gear Reducion Box
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | 5 PIECES |
| Price | USD1000-100000 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 20 days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000 PCS PER MONTH |
Product Details
| High Light | helical speed reducer,helical bevel gearbox |
||
|---|---|---|---|
Product Description
Metric Shaft Mounted Speed Reducer HXGF Series , Helical Gear Reducion Box
Quick Details:
Hengfengtai Metric Shaft Mounted Speed Reducer HXGF series are metric in design throughout and have
power ratings to AGMA standard.
Rated Power:0.29-134.2 KW
Output Torque:180Nm-17000 N.m
Model number:HXGF30 - HXGF100
Output shaft diameter:30-120mm
Ratio:5-20
Input Speed:500-1400 RPM
Output Speed:256- 7499 RPM(Na=100rpm )
|
Other Details:
· Gearing Arrangement: Helical
· Place of Origin: Zhejiang, China (Mainland)·
· Brand Name: HENGTAI
· Color: According to customer
· Mounting position: Shaft mounted
· Material for box: cast iron
· Packing: Strong wooden cases for exporting
· Output shaft: Hollow output shaft
· Accessories: Backstop, Torque arm, etc
|
Descriptions:
· CASE MATERIALS ARE GG 25 FOR FROM P1 TO P4 AND GGG40 FROM P5 TO P10
· CASE HAVE MORE STRENGTH AND ESTHETIC VIEW
· PLACE FOR BEARINGS ARE MACHINED ACCORDING TO STANDARDS
· LONG LIFE CYCLE IS CONSIDERED FOR SELECTING BEARINGS
· GEARS MATERIAL IS SAE 8620 FORGING MATERIALS AND ISOTHERMIC TEMPERING IS APPLIED
· CARBURIZING IS APPLIED ACCORDING TO MODULE OF GEARS AND ADJUSTING HARDNESS DEPTH
· GRINDING AND SCRAPING ARE APPLIED TO GEARS
· SHAFT MATERIAL IS SAE 1050 STEEL AND TOLERANCES ARE ADJUSTED ACCORDING TO STANDARD NORMS
|
OUTPUT |
B5 |
C5 |
D5 |
E5 |
F5 |
G5 |
H5 |
J5 |
|
50 |
1.35 |
2.50 |
3.85 |
5.55 |
8.30 |
12.10 |
19.30 |
31.50 |
|
100 |
2.69 |
4.60 |
6.30 |
11.20 |
16.50 |
25.20 |
39.00 |
61.00 |
|
150 |
3.60 |
5.70 |
8.90 |
14..00 |
20.00 |
35.00 |
50.40 |
78.00 |
|
200 |
4.30 |
6.70 |
10.50 |
16.60 |
24.00 |
40.00 |
60.00 |
93.00 |
|
250 |
4.60 |
7.70 |
12.00 |
18.00 |
27.50 |
46.00 |
68.00 |
107.0 |
|
OUTPUT |
B13 |
C13 |
D13 |
E13 |
F13 |
G13 |
H13 |
J13 |
|
10 |
0.29 |
0.50 |
0.80 |
1.30 |
1.90 |
3.30 |
4.70 |
7.45 |
|
20 |
0.60 |
1.10 |
1.70 |
2.50 |
4.10 |
7.00 |
10.00 |
15.80 |
|
30 |
0.80 |
1.70 |
2.60 |
4.20 |
6.20 |
10.50 |
15.00 |
24.00 |
|
40 |
1.15 |
2.20 |
3.50 |
5.50 |
8.10 |
14.00 |
20.00 |
31.00 |
|
50 |
1.40 |
2.50 |
4.00 |
6.30 |
9.40 |
16.00 |
23.00 |
36.00 |
|
60 |
1.70 |
3.00 |
4.70 |
7.40 |
11.10 |
19.00 |
27.00 |
42.5 |
|
70 |
1.90 |
3.30 |
5.20 |
8.25 |
12.10 |
21.00 |
30.00 |
46.00 |
|
80 |
2.20 |
3.90 |
6.15 |
9.65 |
14.20 |
24.50 |
35.00 |
54.00 |
|
90 |
2.40 |
4.40 |
6.80 |
10.70 |
15.70 |
27.00 |
39.00 |
60.00 |
|
100 |
2.70 |
4.60 |
7.20 |
11.30 |
16.60 |
28.50 |
41.00 |
63.50 |
|
TORQUE |
275 |
510 |
810 |
1270 |
1865 |
3230 |
4650 |
7100 |
|
TORQUE |
260 |
420 |
740 |
1120 |
1790 |
2950 |
4550 |
6600 |
Your benefits:
Interchangeable to allow fast and easy replacement.
[1] Robust construction ideal for heavy-duty applications.
[1] Wide ratio range gives competitive size selections.
[1] Parallel and taper bore options allow easy removal for
repair.
[1] Sprag clutch backstop available to prevent drive reversal.
[1] Enhance seal arrangements for use in hostile environments
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
Specifications:
|
Dimension(mm) |
HXGF Size |
|||||||
|
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
|
|
Standard size of shaft |
30 |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
|
Alternative size of shaft |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
120 |
|
Input shaft keyway |
6x3.5x50 |
6x3.5x59 |
8x4x63 |
8x4x70 |
10x5x70 |
12x5x90 |
14x5.5x100 |
16x6x100 |
Permitted Torque:
|
Model(single/double) |
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
||||||||
|
Nm(100rpm) |
256 |
277 |
401 |
468 |
632 |
783 |
983 |
1194 |
1444 |
1881 |
2407 |
2970 |
3457 |
4380 |
5940 |
7449 |
Applications:
Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:
Baggage handing
Pulp, paper, and forestry
Aggregate and mining
Mixers and process equipment
Grain and agriculture
