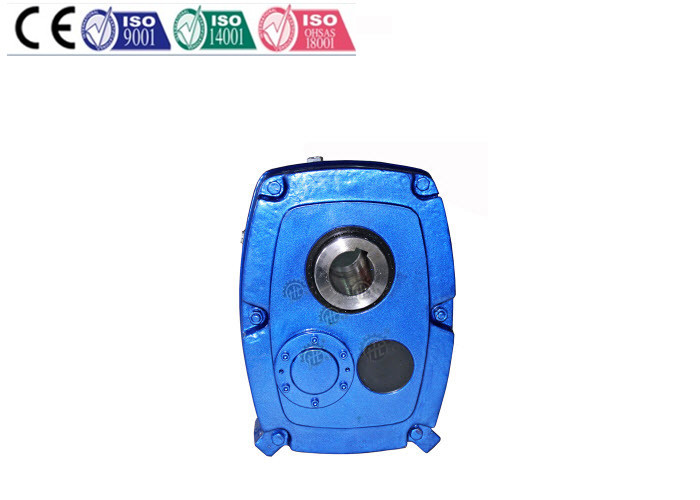

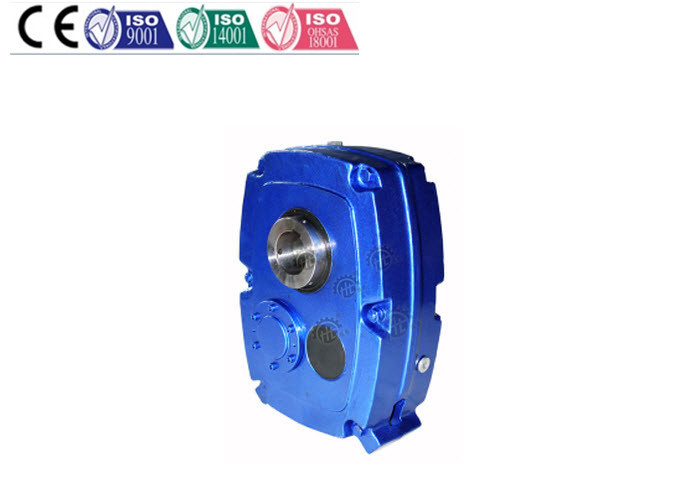

Precision Helical Gear Reducer / Hollow Shaft Gear Reducer With Backstop

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF series
Minimum Order Quantity FIVE PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Precision Helical Gear Reducer / Hollow Shaft Gear Reducer With Backstop





Quick Details:



Hengfengtai Metric Shaft Mounted Speed Reducer HXGF series are metric in design throughout and have



power ratings to AGMA standard.





Rated Power:0.29-134.2 KW



Output Torque:180Nm-17000 N.m



Model number:HXGF30 - HXGF100



Output shaft diameter:30-120mm



Ratio:5-20



Input Speed:500-1400 RPM



Output Speed:256- 7499 RPM(Na=100rpm )







Other Details:



·                                 Gearing Arrangement: Helical



·                                 Place of Origin: Zhejiang, China (Mainland)·



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc







Descriptions:



  Shaft Mounted Speed Reducers (SMSR) are ultra compact when compared to other designs.



  • Luggage conveying
  • Fibre, paper processing and forestry industry
  • Mineral working and mining
  • Mixing
  • Grain processing & agriculture



  Long established and proven drive system.

  Wide range of variation available:

  • Shaft mount, face mount, foot mount, motor mount, hydraulic input, screw conveyor adaptor.

  Shaft Mounted Speed Reducers (SMSR) are ultra compact when compared to other designs.


SMSR Video Presentation to illustrate internal assembly of gear, shaft, bearings, oil seals, oil level indicator of  Hengtai SMSR Gearboxes.






SIZES

A

B

C

D

E

F

Input Shaft Keyway

H

J

K

P

T

U

V

W

X

Y

Hub Dia

STD

ALT

B

134

30

40

63

59

80

19j6

6x3.5x50

104

131

55

10

186

226

81

75

25

79

C

142

40

50

72

65

90

22j6

6x3.5x5.6

108

156

59

10

218

270

96

90

31

95

D

152

50

55

77

68

100

25j6

8x4x63

118

188

76

12

258

328

117

110

37

116

E

170

55

65

85

76

115

28j6

8x4x70

130

222

90

12

278

377

129

125

43

133

F

189

65

75

90

87

130

32k6

10x5x70

149

242

98

16

317

414

143

141

50

150

G

212

75

85

105

110

145

42k6

12x5x90

172

277

110

16

365

468

162

156

56

166

H

242

85

100

116

115

170

48K6

14x5.5x100

190

330

88

16

434

550

195

189

62

200







Your benefits:



Higher rating with a 25°pressure angle and wider gear teeth face for maximum torque



Heavy duty roller bearings for maximum strength and extended life



Flexible motor mounting capabilities



Backstops with centrifugal lift-off sprags to maximize reliability





Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.







Applications:



Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:



Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture





Specifications:



Dimension(mm)

HXGF Size

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Standard size of shaft

30

40

50

55

65

75

85

100

Alternative size of shaft

40

50

55

65

75

85

100

120

Input shaft keyway

6x3.5x50

6x3.5x59

8x4x63

8x4x70

10x5x70

12x5x90

14x5.5x100

16x6x100









Permitted Torque:





Model(single/double)

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Nm(100rpm)

256

277

401

468

632

783

983

1194

1444

1881

2407

2970

3457

4380

5940

7449







Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.
