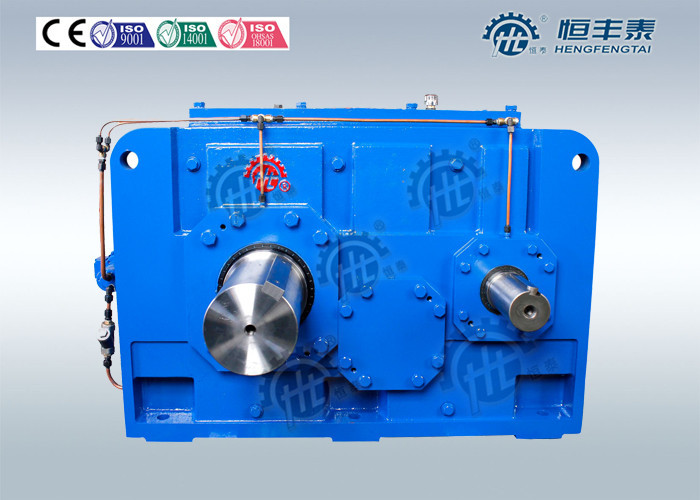

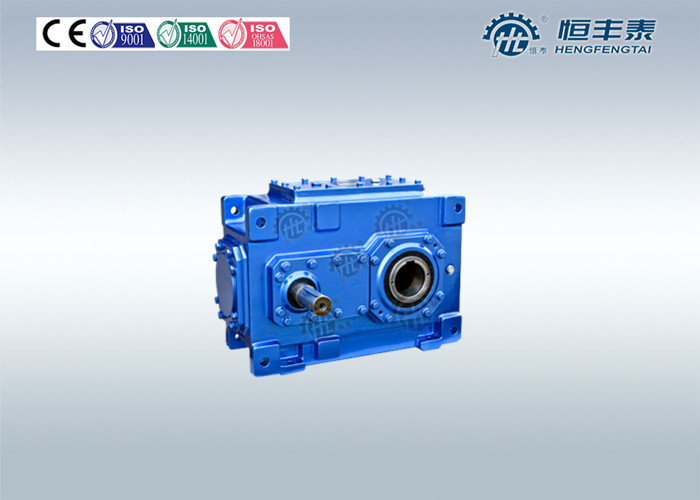

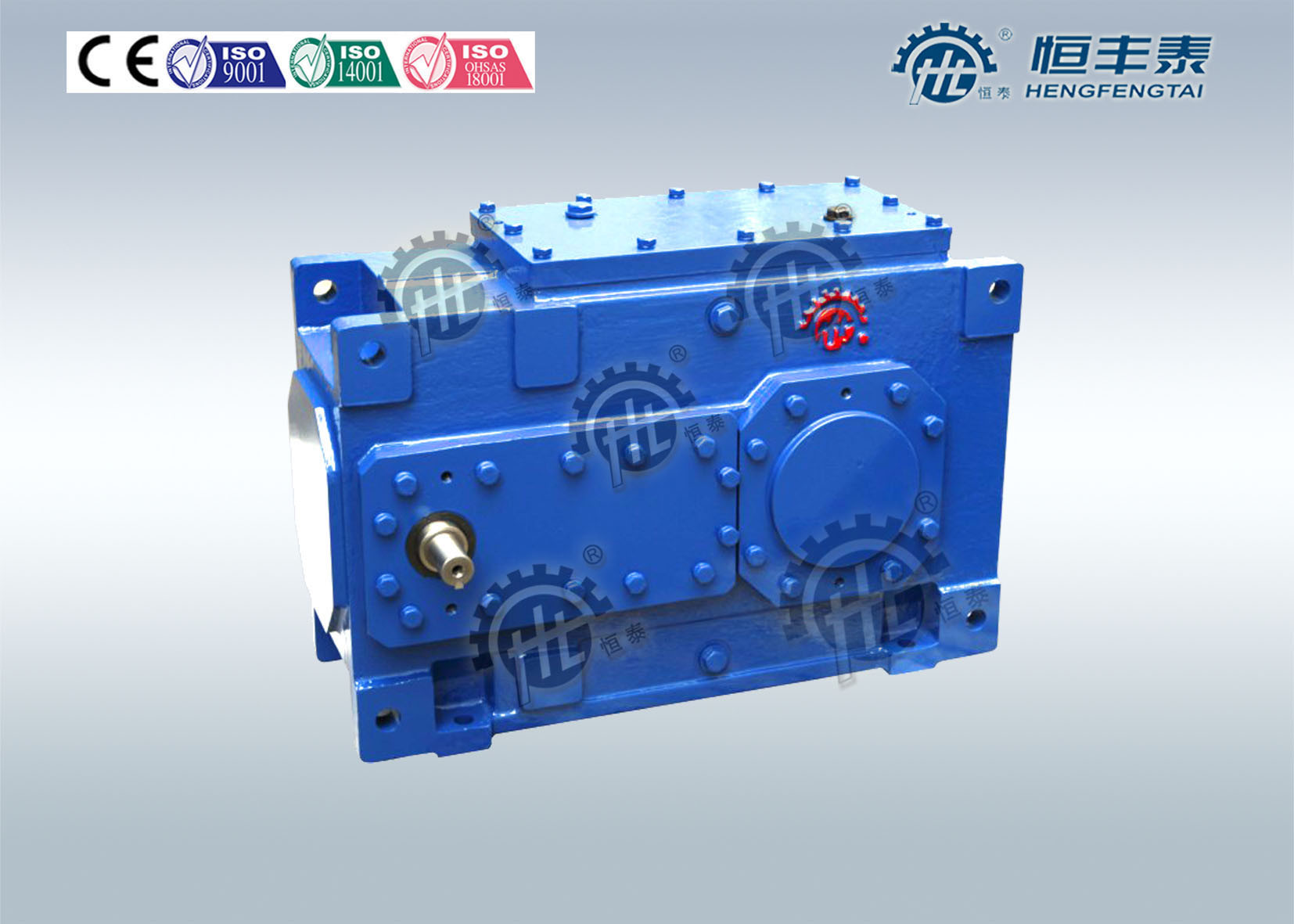

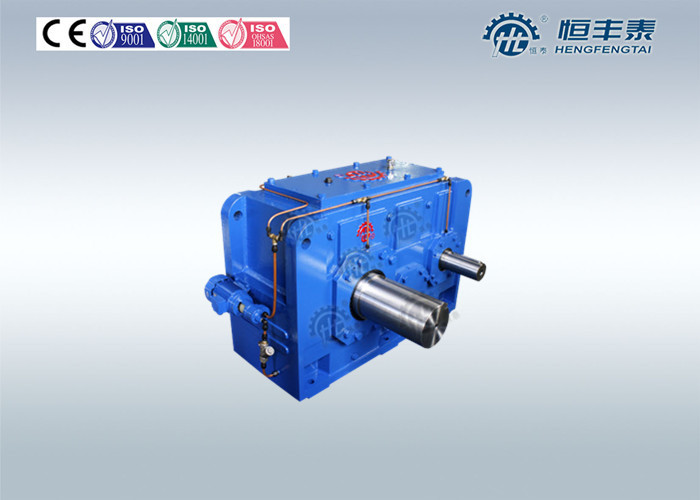

Flender Helical Gear Reducer Parallel Shaft Mounted Gear Box

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenhou city ,Zhejiang ,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number H.B
Minimum Order Quantity 5 PIECES
Price USD1000-100000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 40 Days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH
Product Details
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Flender Helical Gear Reducer Parallel Shaft Mounted Gear Box





Quick Details:


  • Gearing Arrangement:

    Helical

    Output Torque:

    450000 N.m

     Rated Power:

    1.1-5100KW

    Input Speed:

    750-1500 rpm

     Output Speed:

    1.67-1200RPM

     Place of Origin:

    Zhejiang, China (Mainland)

    Model Number:

     H1SH3-H4SH26

     Brand Name:

     HENGTAI

    Color:

    According to customer

    Ratio:

    1.25-450

    Mounting position:

    foot mounted

    Material for box:

    cast iron

    Packing:

     Strong wooden cases for exporting

    Output shaft:

    Solid or hollow output shaft

    Accessories:

    cooling system, lubrication system

     Output shaft diameter:

     30-420MM



Other name:


Helical gear reducer applied for conveyor


parallel shaft mounted gear box


Progressive ratio helical shaft gear reducer




Description:


H.H series high power helical gear reducer, similar to Flender H.B gearbox, big power and torque.





Our H.H series high power helical gear reducer is widely used in Mining, smelting machine as power



transmission.





The H.H series high power helical gear reducer is Horizontal and vertical installation,single to four stage,



available in 26 sizes.



Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft

H. Hollow Shaft

D. Hollow Shaft for Shrink Disk

H: Horizontal

V: Vertical

M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000







Your benifits:

Modular design system Multi-purpose use of the housing and internal components.



Progressive ratio of sizes for optimum selection of sizes.



Improved noise level through grounded bevel gear teeth and noise-absorbing housings.


Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives


Specification:




H1    i=1.25-5.6
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2    i=6.3-28
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,
H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26

H3    i=25-112
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,
H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26

H4    i=100-450
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,
H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26



 Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



pls check the oil level in regular time.



THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.



Flender Helical Gear Reducer Parallel Shaft Mounted Gear Box 0



Flender Helical Gear Reducer Parallel Shaft Mounted Gear Box 1
