Plastic Helical Gear Reducer Single Shaft Worm Speed Reducer

  • Plastic Helical Gear Reducer Single Shaft Worm Speed Reducer
  • Plastic Helical Gear Reducer Single Shaft Worm Speed Reducer
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number H.B
Minimum Order Quantity 5 PIECES
Price USD1000-USD70000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 40days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model H2SH5 Output Shaft Solid
Stage 2 Reduction Stage Apply Mining Ball Mill
Input Speed 750-1500 Rpm Applications Water Screw Drives
Highlight

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Helical Gear Reducer H1SH7 Ruber Tyre Plastic Single Shaft Shredder 26 Models





Quick Details:

  • Gearing Arrangement: Helical
  •
  • Output Torque: 450000 N.m
  •
  • Rated Power: 1.1-5100KW
  •
  • Input Speed: 750-1500 rpm
  •
  • Output Speed: 1.67-1200RPM
  •
  • Place of Origin: Zhejiang, China (Mainland)
  •
  • Model Number: H1SH3-H4SH26
  •
  • Ratio: 1.25-450
  •
  • Output shaft diameter: 30-420MM





Other name:

Helical gear reducer applied for conveyor


parallel shaft mounted gear box


Progressive ratio helical shaft gear reducer




Description:


Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft

H. Hollow Shaft

D. Hollow Shaft for Shrink Disk

H: Horizontal

V: Vertical

M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000





Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives


Specification:



Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26

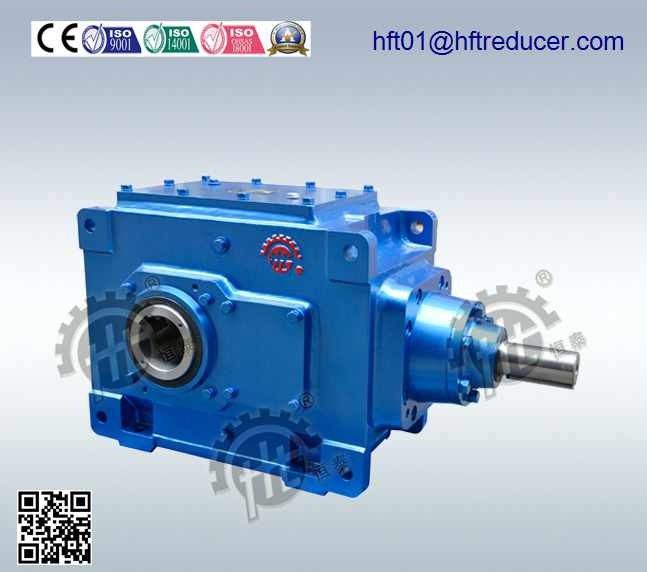

Plastic Helical Gear Reducer Single Shaft Worm Speed Reducer 0

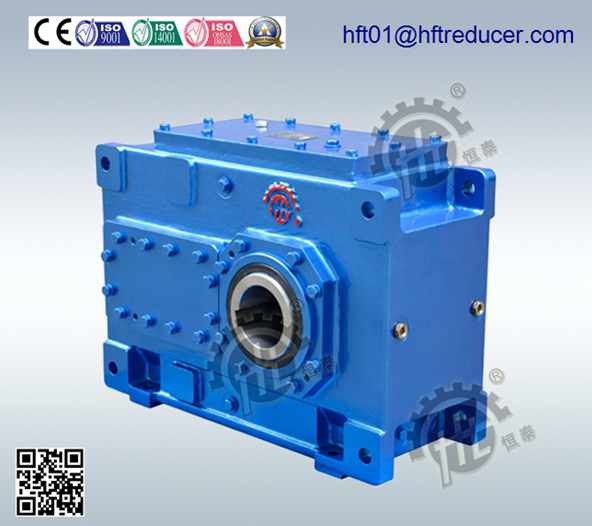

Plastic Helical Gear Reducer Single Shaft Worm Speed Reducer 1
