Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt

  • Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity 5pcs
Price USD300.00-USD30000.00
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

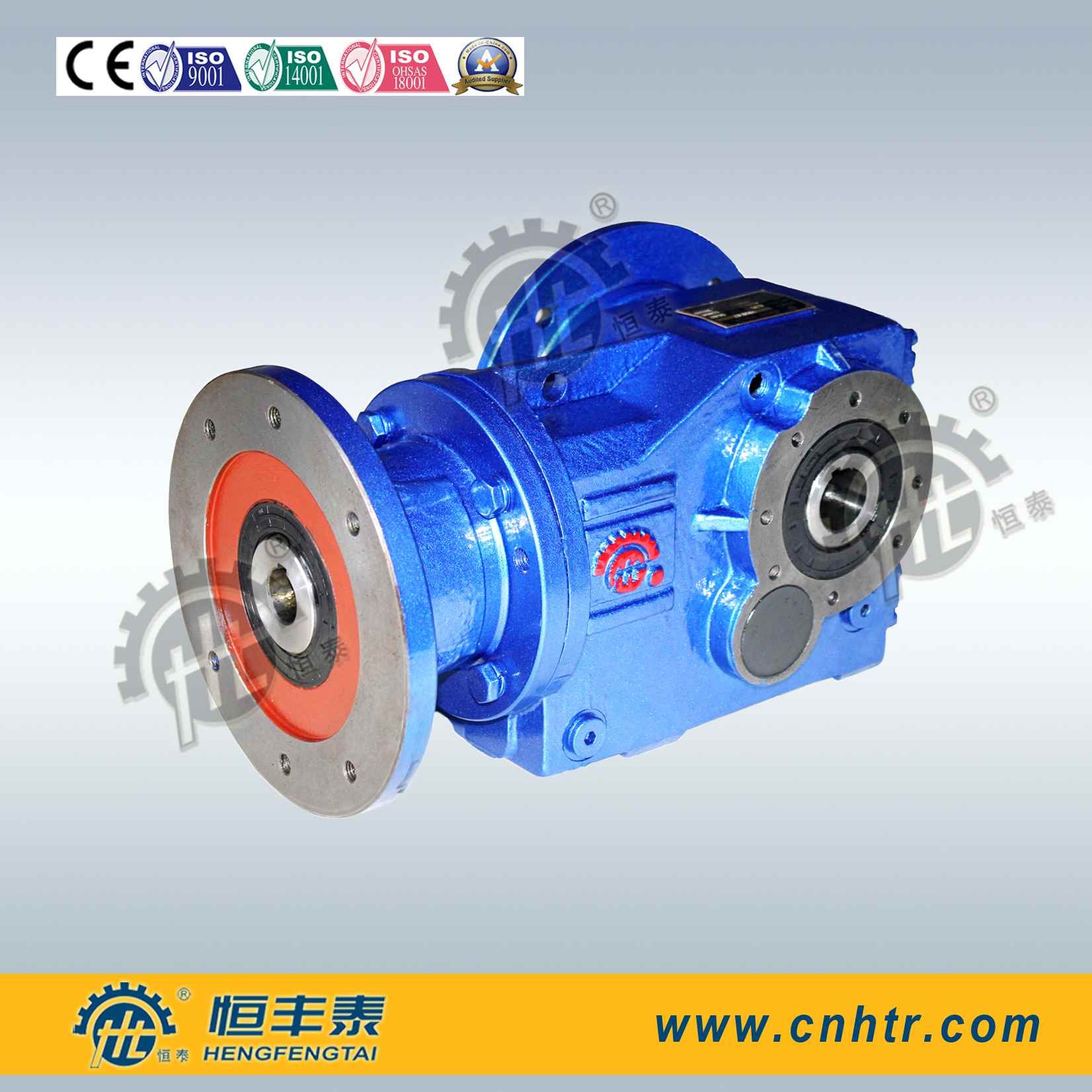

Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt





Quick Details



  • Model K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
  • Structure form : foot mounted with solid shaft reducer,Torque arm mounted with hollow shaft,Flang-mounted with hollow shaft.
  • Ratio range: 4.09-180.7
  • Stage: single stage, two stage, three stage, four stage.



Specification:



           model

37

47

57

67

77

87

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870



Note:



KA:  hollow shaft output



KF:  flange-mounted solid shaft output



KAF: flange-mounted hollow shaft output



KAZ: short-flange-mounted hollow shaft output



KAT: torque-arm-mounted hollow shaft output



KAB: foot-mounted hollow shaft output





Applications:



Material handling



Conveyor belts



Ball mills



Wire drawing machines



Food industry



Agitators



Printing presses



Belt filter presses



Shredders/compacters



Chip conveyors



Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt 0





Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt 1





Helical Gear Reducer Product informations:

Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt 2



Shaft Mounted Helical Bevel Gear Reducer Foot Mounted For Conveyor Belt 3
