Industrial Helical Gear Reducer / Hollow Shaft Gearbox H2sh7 Recycling

  • Industrial Helical Gear Reducer / Hollow Shaft Gearbox H2sh7 Recycling
  • Industrial Helical Gear Reducer / Hollow Shaft Gearbox H2sh7 Recycling
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number HH Series Helical Gear Reducer
Minimum Order Quantity 1 Pieces
Price USD 1000-100000
Packaging Details Wooden Case, Standard Export Package
Delivery Time 40 Days
Payment Terms T/T; L/C
Supply Ability 100 Pieces Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cast Iron GG250 Reduction Stage 2 Stage
Brand Hengtai Model 1-26
Ratio 30 Shaft Hollow Shaft
Highlight

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

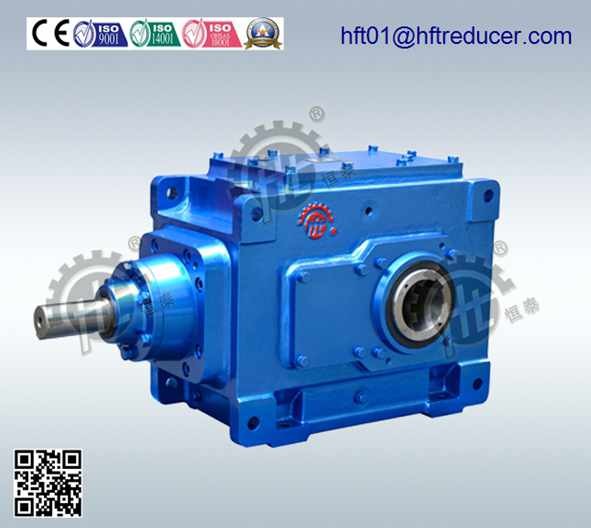

Industrial Helical Gear Reducer / Hollow Shaft Gearbox H2sh7 Recycling




Quick Details:

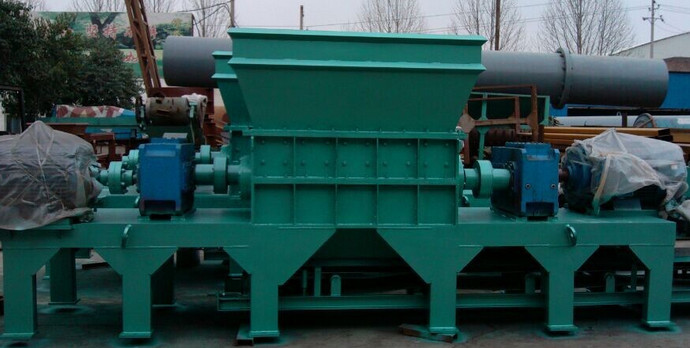

Plastic (pet bottle, pe pp film/bags, plastic lumps, plastic pipes, plastic profile/sheet)shredder machine
single sahft shredder for PE/PP film recycling
usage: plastic waste recycling shredder gearbox
blade: SKD11/D2  33-85pcs
power: 18-95kw
output: 500kg/h

Material:

Material Data

Housing

HT 250 Cast Iron

Bearing

42 CrMo

Gear

Material

 20 CrMnTi

Hardness

 Surface hardness: 58-62 HRC
Center hardness: 33-48 HRC

Carburization Depth

 0.6-1.5 Mm

Grinding Precision Grade

 ISO1328-1: 1995 Class 5-6,

Surface Finish

 0.8




Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft
H. Hollow Shaft
D. Hollow Shaft for Shrink Disk

H: Horizontal
V: Vertical
M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000



Models:


Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,

H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26


H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,

H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26


H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,

H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26





Application:

Widely used in metallurgy, mining, steel, weighing, transportation,
petrochemical, chemical, construction, textile, pharmaceutical, food,
transportation, environmental protection, light industry, plastic, paper,
parallel parking,
lifting, Bridges, shipbuilding and other heavy industry department
the mechanical transmission fields.


About Hengfengtai reducer:

Brand : Hengtai
Founding year:   1991
Quantity of employees:    300 employees
Factory square:   50000square meters
Annual production capability:   60,000sets
Main products: Hxg, Hsmr shaft mounted reducer,
                           HH,HB helical bevel series gear box reducer
                           HR serial helical geared motor,
                           HS serial helical worm geared motor,
                           HK serial helical bevel geared motor,
                           HF serial parallel helical geared motor,
                           HT 300 serial planetary gearbox


H.B.helical bevel gearbox informations:
