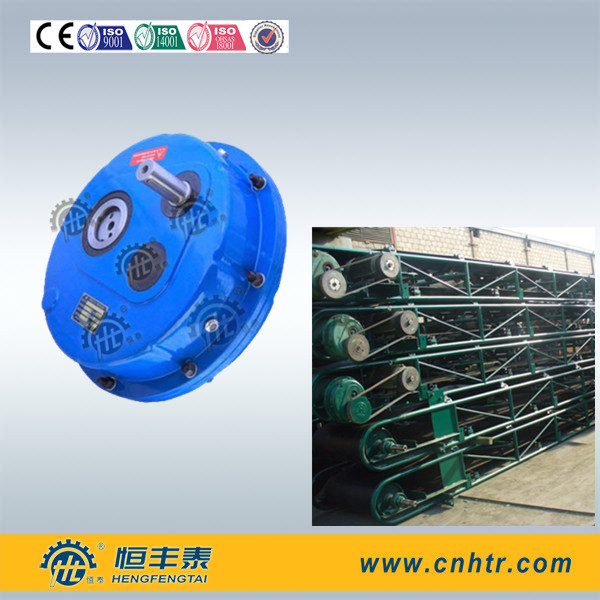

Industrial Helical Hollow Shaft Mounted Gearbox With adjustment rod extension

  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengtai
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number HXG 30-125
Minimum Order Quantity 10 Pieces
Price USD 100-1900
Packaging Details Wooden Case, Standard Export Package
Delivery Time 25-30 Days
Payment Terms T/T; L/C
Supply Ability 1000 Pieces per Month
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Industrial Helical Hollow Shaft Mounted Gearbox With adjustment rod extension





Quick Details:





Trade Mark



Hengtai Reducer



Gear Arrangement



Shaft Mounted Gearbox



Mounting Position



Shaft Mounted



Output Torque



180-17000 N.M



Rated Power



0.92-226 Kw



Transmission Ratio



5- 31



Input Speed



500-1400 Rpm



Color



Ral 5010& 7031& 7040





Description:



Helical Gear Reducer Mining Conveyor Gearbox For Conveyor Belt is a shaft mounted gearbox which can be optionally fitted with a backstop option (except for HXG30). It is appreciated that the backstop option prevents



conveyor from back driving once the conveyor inclines.

This Helical Gear Reducer Mining Conveyor Gearbox For Conveyor Belt is wildly used in mining conveyor fields such as Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact Crusher conveyor



gearbox, Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.

Ps: Scan QR code to connect me for more services.




Specification:





Model



 HXG30 HXG35 HXG40 HXG45 HXG50



Permitted Torque (Nm)



 180 420 950 1400 2300



Model



 HXG60 HXG70 HXG80 HXG100 HXG125



Permitted Torque (Nm)



 360 5100 7000 11000



17000





Your benefits:

1. All input/ output shafts are plated so that can prevent them to rusting.

2. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is

safe from contamination.

3. High efficiency.
Our gearbox units now are in higher load capacity as the gears have been redesigned.

4. Strong capacity of being overloaded.
Our gearbox units now are in higher load capacity as the gears have been redesigned.

5. Long service life.
Life of main parts of gearbox (except wearing parts) should not be less than 20, 000 hours.

6. Anti-leaking oil.
The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.

7. Simple structure and convenient to be installed and maintained

8. Small volume

9. Widely application




Application:



Industrial Helical Hollow Shaft Mounted Gearbox With adjustment rod extension 0







Industrial Helical Hollow Shaft Mounted Gearbox With adjustment rod extension 1



Industrial Helical Hollow Shaft Mounted Gearbox With adjustment rod extension 2

Industrial Helical Hollow Shaft Mounted Gearbox With adjustment rod extension 3
