Motor speed reduction Inline Helical Gear Reducer with IEC or NEMA flange
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting | Foot Mounted | Application | Conveyor, Other Machines |
|---|---|---|---|
| Bearing Brand | LYC,HRB,ZWZ | Input Speed | 1450rpm |
| Material | 20 CrMnTi | Feature | High Torque |
| Highlight | helical speed reducer,helical bevel gearbox |
||
Product Description

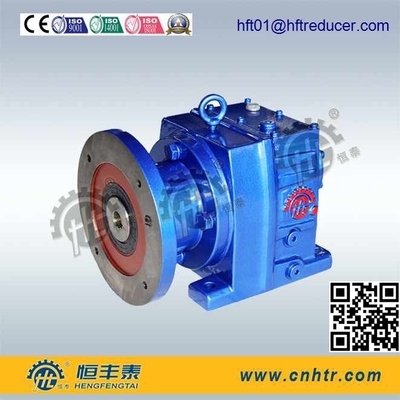

Motor speed reduction Inline Helical Gear Reducer with IEC or NEMA flange
Quick Details:
|
Model
|
27 | 37 | 47 | 57 | 67 | 77 |
|
Structure form
|
HRHR..FHRF | |||||
|
Input power
|
0.12-3 | 0.12-3 | 0.12-5.5 | 0.12-7.5 | 0.12-7.5 | 0.18-11 |
|
Ratio
|
3.37-136 | 3.4-133.3 | 3.87-182.6 | 4.32-183.2 | 4.32-180.7 | 5.28-200.9 |
|
Permissible torque
|
110 | 170 | 255 | 380 | 510 | 700 |
|
weight
|
6.2 | 9.4 | 11 | 20 | 28 | 40 |
|
Model
|
87 | 97 | 107 | 137 | 147 | 167 |
|
Structure form
|
HRHR..FHRF | |||||
|
Input power
|
0.55-22 | 0.55-37 | 2.2-55 | 5.5-75 | 11-110 | 11-160 |
|
Ratio
|
5.33-245.7 | 4.52-280.6 | 4.98-255.4 | 5.22-223.2 | 4.93-162.1 | 10.43-224.6 |
|
Permissible torque
|
1320 | 2550 | 3670 | 6800 | 11050 | 15300 |
|
weight
|
70 | 112 | 169 | 245 | 440 | 770 |
HR helical gear box dimension:
|
Model |
Shaft Dia.(mm) |
Output Flange Dia. |
Power |
Ratio |
Permitted Torque |
Weight |
||
|
Solid |
(mm) |
(kw) |
(Nm) |
(KGS) |
||||
|
R37 |
25k6 |
120 |
0.12~3 |
3.4~1383.3 |
170 |
9.4 |
||
|
R47 |
30k6 |
140 |
0.12~5.5 |
3.87~182.6 |
255 |
11 |
||
|
R57 |
35k6 |
160 |
0.12~7.5 |
4.32~183.2 |
380 |
20 |
||
|
R67 |
35k6 |
200 |
0.12~7.5 |
4.32~180.7 |
510 |
28 |
||
|
R77 |
40k6 |
250 |
0.18~11 |
5.28~200.9 |
700 |
40 |
||
|
R87 |
50m6 |
300 |
0.55~22 |
5.33~245.7 |
1320 |
70 |
||
|
R97 |
60m6 |
350 |
0.55~37 |
4.52~280.6 |
2550 |
112 |
||
|
R107 |
70m6 |
350 |
2.2~55 |
4.98~255.4 |
3670 |
169 |
||
|
R137 |
90m6 |
450 |
5.5~75 |
5.22~223.2 |
6800 |
245 |
||
|
R147 |
110m6 |
450 |
11~110 |
4.93~162.1 |
11050 |
440 |
||
|
R167 |
120 m6 |
550 |
11~160 |
10.43~224.6 |
15300 |
770 |
||
Mounting Arrangements
Different kinds of mounting arrangements are defined as following:
|
M1 |
orizontally mounted motor,unit foot(forR,RX)or unit base (for RF,RXF) is at bottom. |
|
M2 |
motor is vertically mounted downwards. |
|
M3 |
horizontally mounted motor, unit foot(forR,RX)or unit base (for RF,RXF) is top. |
|
M4 |
motor is vertically mounted upwards. |
|
M5 |
horizontally mounted motor,if placed on M1 position,left side of unit turns to bottom (view point:towards from motor side). |
|
M6 |
horizontally mounted motor,if placed on M1 position,left side of unit turns to top (view point:towards from motor side). |
