3 phase industrial motor used flange or foot mounted inline helical gear reducer

  • 3 phase industrial motor used flange or foot mounted inline helical gear reducer
  • 3 phase industrial motor used flange or foot mounted inline helical gear reducer
Certification CE, ISO9001, ISO14001
Model Number HR37,HR47,HR57,HR67,HR77,HR87,HR97,HR107,HR137,HR147,HR167
Minimum Order Quantity 1 PCS
Price USD300.00
Packaging Details 8 pcs / pallet
Delivery Time 25 days.
Payment Terms T/T, L/C
Supply Ability 1000 PCS per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color RAL5010(blue), RAL7031(grey), Or As Requirement. Power 0.12-160 KW
Ratio 3-280 Input Speed 750-1800 Rpm
Output Speed 5-400 Rpm Output Torque 110-15300 Rpm
Shaft 25 - 110 Mm
Highlight

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

3 phase industrial motor used flange or foot mounted inline helical gear reducer:



Descriptions:



1). ISO9001, ISO14001 and CE certification. ,

2). Foot or flange mounted.

3). Input flange is IEC or NEMA standard input.

4). Dimension same with SEW.

5). Compact design, small volume, strong torque.

6). High efficiency, low energy consumption, small vibration, and low noise.





General technical data:



 Ratio:     3.37~280.6

 Power:    0.12~160KW

 Torque: 110~15300N.m

 Input:     750-1800 rpm





Model details:



Model

Shaft diameter

Power

Ratio

Permit torque

Weight

HR37

25 mm

0.12-3 KW

3.4-133.3

170 N.m

15 kg

HR47

30 mm

0.12-5 KW

3.87-182.6

255 N.m

20 kg

HR57

35 mm

0.12-7.5 KW

4.32-183.2

380 N.m

25 kg

HR67

35 mm

0.12-7.5 KW

4.32-180.7

510 N.m

30 kg

HR77

40 mm

0.18-11 KW

5.28-200.9

700 N.m

40 kg

HR87

50 mm

0.55-22 KW

5.33-245.7

1320 N.m

70 kg

HR97

60 mm

0.55-37 KW

4.52-280.6

2550 N.m

112 kg

HR107

70 mm

2.2-55 KW

4.98-255.4

3670 N.m

169 kg

HR137

90 mm

5.5-75 KW

5.22-223.2

6800 N.m

245 kg

HR147

110 mm

11-110 KW

4.93-162.1

11050 N.m

420 kg

HR167

120 mm

11-160 KW

10.43-224.6

15300 N.m

750 kg







Business FAQS:


1). MOQ: 1 pcs
2). Delivery lead time: 15 days
3). Payment terms: FOB, CIF
4). Payment method: T/T, L/C

5). Shipping port: Shanghai /Ningbo
6). Warranty: 15 months







Pictures:

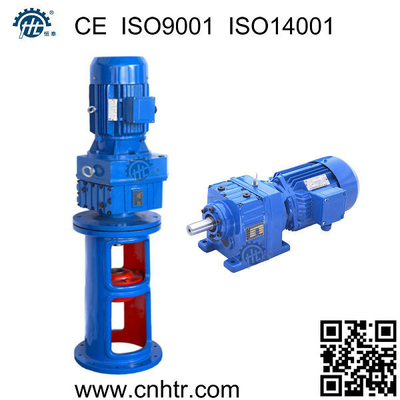

1).HR foot mounted helical gear motor

 3 phase industrial motor used flange or foot mounted inline helical gear reducer 0





2).HRF flange mounted helical gear motor

3 phase industrial motor used flange or foot mounted inline helical gear reducer 1
