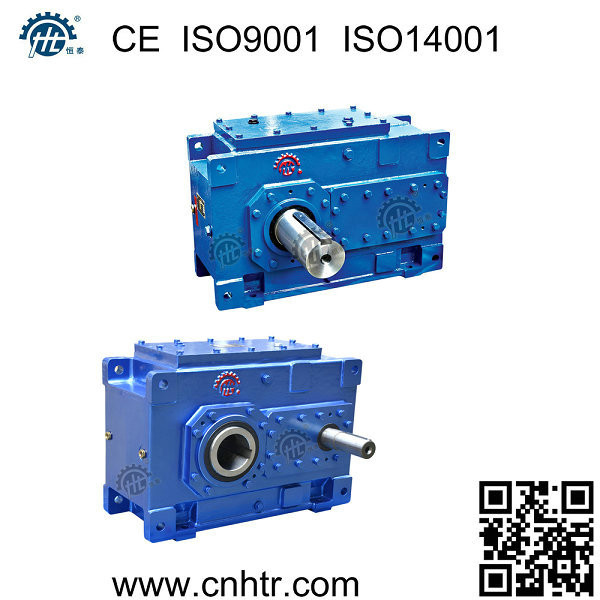

Shredder machine used H series parallel shaft Flender helical gearbox gear unit

  • Shredder machine used H series parallel shaft Flender helical gearbox gear unit
Certification CE, ISO9001, ISO14001
Model Number H1SH3-H4SH26
Minimum Order Quantity 1 pcs
Price USD1000.00
Packaging Details 1 PCS/pallet, standard export wooden case package.
Delivery Time 25-40 days according to qty.
Payment Terms T/T, L/C, Western Union
Supply Ability 500 pcs / per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Speed 750-1500 Rpm Color RAL5010(blue); RAL7031(grey); Or As Requirements
Output Speed 1.5-1200 Rpm Ratio 1.25-500
Power 1.1-4500 Kw Backstop With Or Not
Cooling System Fan, Or Copper Tube With Cold Water Lubrication Oil Pump
Highlight

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Shredder machine used H series parallel shaft Flender helical gearbox gear unit ​:





 Products characters:

  • Brand Name:Hengtai Reducer
  • Place of Origin: Zhejiang, China (Mainland)
  • Gearing Arrangement: Helical
  • Output shaft: Solid or hollow output shaft
  • Model Number: H1SH3-H4SH26
  • Rated Power: 1.1-5100KW
  • Ratio: 1.25-450
  • Input Speed: 750-1500 rpm
  • Output Speed: 1.67-1200RPM
  • Output Torque: 3000-450000 N.m
  • Output shaft diameter: 30-420mm
  • Material for box: cast iron
  • Gear material: 20CrMnTi, 40CrMnTi, 45# steel.
  • Accessories: cooling system, lubrication system
  • Mounting position: foot horizontal or vertical mounted
  • Color: According to customer
  • Packing: Strong wooden cases for exporting





Applications:



· Palm oil extruder machine, mining ball mill machine, plastic or paper shredder, conveyor
  and other machine.




Model details:



Transmission stage

Ratio(i)

Models

H1

1.25 - 5.6



H1SH3,  H1SH5,  H1SH7,  H1SH9,  H1SH11,  H1SH13,  H1SH15,   H1SH17, H1SH19



H2

6.3 - 28

H2SH4,   H2SH5,   H2SH6,   H2SH7,   H2SH8,   H2SH9,

H2SH10,  H2SH11,  H2SH12,  H2SH13,  H2SH14,  H2SH15,

H2SH16,  H2SH17,  H2SH18,  H2SH19,  H2SH20,  H2SH21,

H2SH22,  H2SH23,  H2SH24,  H2SH25,  H2SH26

H3

25 - 112

H3SH4,   H3SH5,   H3SH6,   H3SH7,   H3SH8,   H3SH9,

H3SH10,  H3SH11,  H3SH12,  H3SH13,  H3SH14,  H3SH15,

H3SH16,  H3SH17,  H3SH18,  H3SH19,  H3SH20,  H3SH21,

H3SH22,  H3SH23,  H3SH24,  H3SH25,  H3SH26

H4

90 - 450

H4SH5,   H4SH6,   H4SH7,   H4SH8,   H4SH9,   H4SH10,

H4SH11,  H4SH12,  H4SH13,  H4SH14,  H4SH15,  H4SH16,

H4SH17,  H4SH18,  H34H19,  H4SH20,  H4SH21,  H4SH22,

H4SH23,  H4SH24,  H4SH25,  H4SH26







FAQS:
1). Delivery lead time: 25 days
2). Payment terms: FOB, CIF
3). Payment method: T/T, 30% in advance, 70% before delivery; Or L/C
4). Warranty: 15 months





Shredder machine used H series parallel shaft Flender helical gearbox gear unit 0   Shredder machine used H series parallel shaft Flender helical gearbox gear unit 1





Shredder machine used H series parallel shaft Flender helical gearbox gear unit 2



Shredder machine used H series parallel shaft Flender helical gearbox gear unit 3
