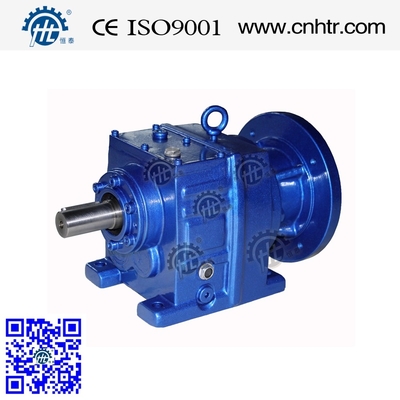

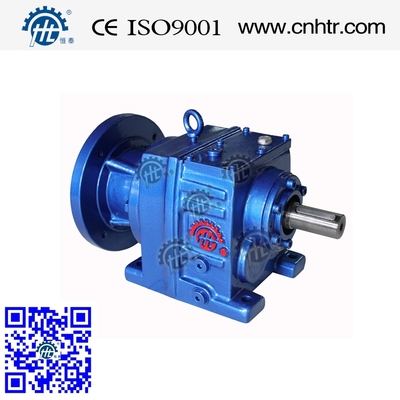

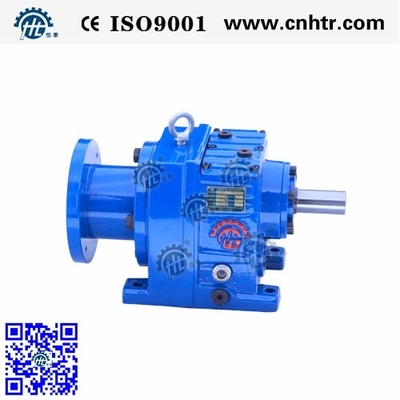

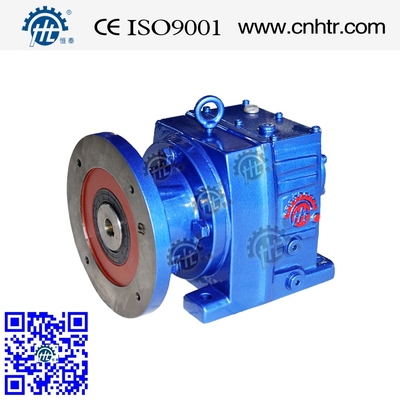

HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange

  • HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange
  • HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange
  • HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange
  • HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange
Certification CE,ISO9001,TUV,SGS,etc
Model Number HR17-167
Minimum Order Quantity 10 PCS
Price USD100-2000/PCS
Packaging Details Standard export package
Delivery Time 7-30days(according to qty)
Payment Terms L/C, T/T, Western Union
Supply Ability 2000PCS/MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ratio 3.4-280.6 Output Torque 110-15300 N.m
Rated Power 0.12-160 KW Output Speed 2.67-534RPM
Model Number HR17-HR167 Mounting Position Foot Mounted,flange Mounted
Highlight

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange:



Feature: Small off-center output and compact struture, maximum utilization of housing space, integral casting housing with a good rigidity to enhance the shaft strength and service lift of bearings.



Installation type: Foot, flange

Output type: Solid shaft

Input type: Motor, input shaft and flan ge



Reducing ratio: Two-stage 5-24.8, three-stage 27.2-264, and combination of EWR/EWR is up to 18125



Average efficiency: Two-stage 96%, three-stage 94%, and combination of EWR/EWR 85%



Specifically designed for mixing EWRM gear unit can bear more axial force and radial force.





Specification:



Rducer type Foot Mounted R Series Helical Gearbox
Structure Foot-mounted soild shaft output
Flange-mounted soild shaft output
Foot-mounted soild shaft output,shaft input
Flange-mounted soild shaft output,shaft input
Mounting Mode Horizontal
Torque-arm
Vertical
Size R17~R167
Transmission ratio 1.3~289.74
Mounting position M1 M2 M3 M4 M5 M6



Product shows::



HR Coaxial Helical Speed Reduction Gearbox(Ratio3.4-280.6) With IEC Input Flange 0
