Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange

  • img.alt
Place of Origin China
Brand Name Hengtai
Certification CE, ISO9001,ISO14001,SGS
Model Number HF
Minimum Order Quantity 1 PCS
Price USD 100-2000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 500 Pieces per Month
Product Details
Gearing Arrangement Helical Output Torque 110~15300N.m
Rated Power 0.12-200kw Input Speed 750-1800 Rpm
Output Speed 9.5~385RPM Ratio 3.71~276.6
Housing Material Cast Iron Input Form Direct Connection With Motor, Flange For Mounting Motor, Solid Shaft
Output Form Solid Shaft,hollow Shaft Surface Hardness Of Gear HRC58-62
Transimission Stage Single, Two, Three-stage
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description
About HF

Product Description



Parallel shaft mounted helical gear reducer, made by Zhejiang Hengfengtai Reducer Mfg. Co., td, are the perfect solution when space is limited. The many different sizes and designs ensure that the Parallel shaft mounted helical gear reducer can be used in a wide variety of applications even under the most unfavorable conditions. Such as agriculture, telecommunications industry, food industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so on.

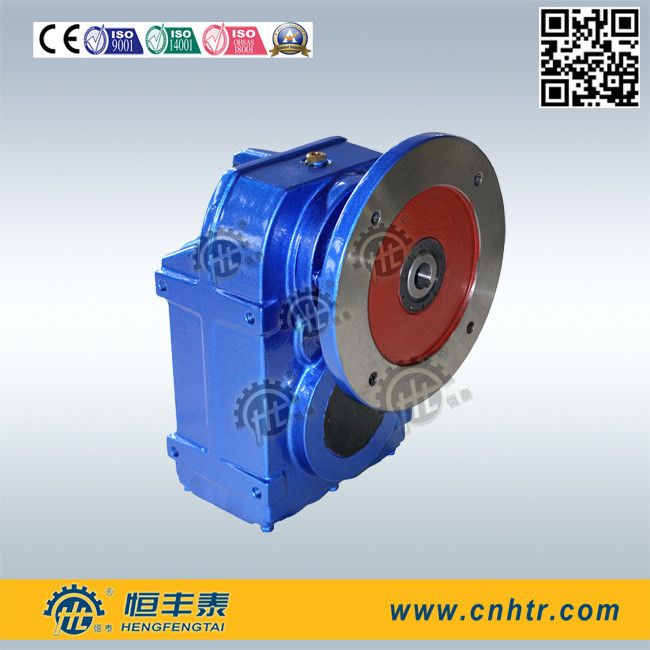

Photo of HF parallel hollow shaft gear reducer with output flange


Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 0





Specifications:





Model 37 47 57 67 77 87
Structure F,FA,FF,FAF,FAZ,FHZ
Input Power KW 0.12~3 0.12~4 0.12~5.5 0.18~7.5 0.37~18.5 0.75~22
Transmission Ratio i 3.71~129.8 5.01~189.2 5.26~193.8 3.98~174.7 4.34~199.4 4.06~276.6
Allowed Torque Nm 170 340 510 705 1280 2550
Weight kgs 14.5 20 38 61 100 165



Model 87 97 107 127 157
Structure F,FA,FF,FAF,FAZ,FHZ
Input Power KW 0.75~22 0.75~30 2.2~55 4~90 11~160
Transmission Ratio i 4.06~276.6 4.7~279.9 6.26~250.7 4.61~170.4 11.67~262.9
Allowed Torque Nm 2550 3670 6670 10200 15300
Weight kgs 165 290 450 770 1870







Product Benefits



1: Modular design, small volume and strong capacity of being overloaded.

2: Wide selection range for transmission ratios, many options of the motor combinations.
3: The efficiency can be up to as high as 98%, excellent function, small vibration and low noise.
4: Can output very low speed.
5: The box body is made of high strength cast iron
6: Convenient and low cost maintenance.





Applications



Our F Series Parallel shaft mounted helical gear reducer can be with roller as the power source of belt conveyor or lifting machine. With the characteristics of conveyor, high efficiency, simple structure, convenient installation and maintenance. It was widely used in postal, cenment, mining, tourism, food industry, etc.





Package:



Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 1





Factory Show:



Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 2





Quality control:



Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 3





Quality certificate:





Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 4





Other products:



Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 5





Contact Me:



Welcome to contact me for more details:

Industrial Helical Geared Motor Speed Reduction Gearbox With Output Flange 6
