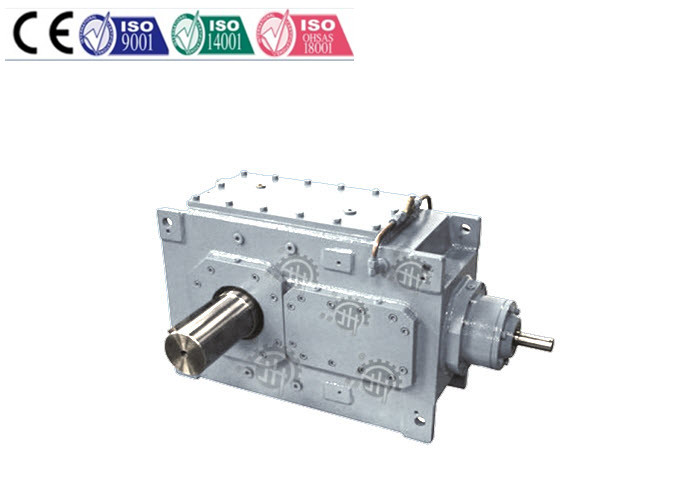

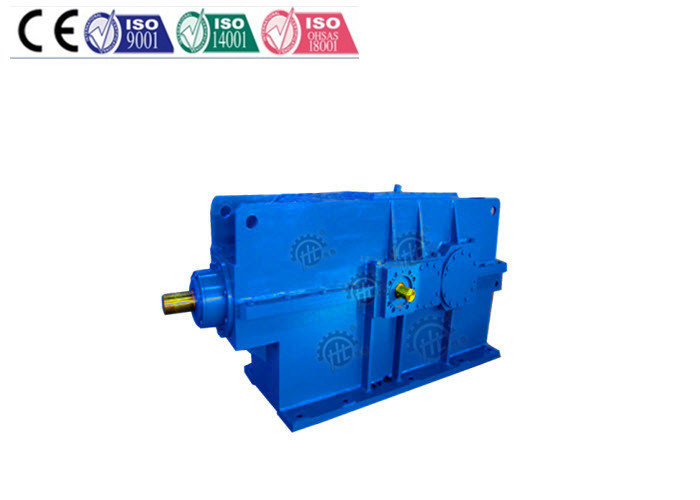

Transmission Bevel Gear Reducer , Helical Engine Gearbox Ratio 1.25 - 450



Transmission Bevel Gear Reducer , Helical Engine Gearbox Ratio 1.25 - 450





Quick Details



                   Model Number: H1SH3-H4SH26



Output shaft: Keyed hollow shaft or solid shaft



Mounting position: foot mounted



Material for box: cast iron



              Output shaft diameter: 30-420MM



              Rated Power: 1.1-5100KW



              Ratio: 1.25-450



                  Output Speed: 1.67-1200RPM



             Output Torque: 450000 N.m



Input Speed: 750-1500 rpm



              Gearing Arrangement: Helical



Input Speed: 750-1500 rpm



Place of Origin: Zhejiang, China (Mainland)



Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation



Brand Name: HENGTAI



Packing: Strong wooden cases for exporting



Accessories: cooling system, lubrication system





Descriptions:



B series bevel gear reducer  are widely used in metallurgy, mining, steel, weighing, transportation,



petrochemical, chemical, construction, textile, pharmaceutical, food, transportation, environmental



protection, light industry, plastic, paper, parallel parking, lifting, Bridges, shipbuilding and other heavy



industry department the mechanical transmission fields.





Your benefits:



1, Large ratio

2, Great load-carrying capacity

3, Steady running

4, Low noise

5, High efficiency

6, Competitive price

7, Good quality

8, Good technology support







Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives









Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.







The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution















Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.





Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.





Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.
