Electric Motor Bevel Gear Reducer 400Kw for Conveyor Drives

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HB series
Minimum Order Quantity 1 PIECES
Price USD1000-USD120000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH
Product Details
High Light

motor speed reducer

,

high speed gearbox
Leave a Message
Product Description

Electric Motor Bevel Gear Reducer 400Kw for Conveyor Drives





Quick Details




Gearing Arrangement



Helical



Rated Power



1.1-5100 KW



Ratio



1.25-450



Input Speed



750-1500 RPM



Output Speed



1.67-1200 RPM



Output Torque



450000 N.m



Output shaft diameter



30-420MM



Other Details:



                    Model Number: H1SH3-H4SH26





                    Output shaft: Keyed hollow shaft or solid shaft.





                    Accessories: cooling system, lubrication system





                    Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation





                    Mounting position: foot mounted





                    Packing: Strong wooden cases for exporting





                    Material for box: Cast iron





                    Place of Origin: Zhejiang, China (Mainland)







Descriptions:



B series bevel gear reducer, which is similar to Flender H.B gearbox, big power and torque.



Horizontal and vertical installation, single to four stage, available in 26 sizes.



Our H.B series bevel gear reducer is modular design system and multi-purpose use of the housing



and internal components. H.B series bevel gear reducer improved noise level through grounded bevel



gear teeth and noise-absorbing housings.





Specification:



Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26






Your benefits:



1, Large ratio


2, Great load-carrying capacity


3, Steady running


4, Low noise


5, High efficiency


6, Competitive price


7, Good quality


8, Good technology support


9, Mounting type: Foot mounted, flange mounted, torque armed mounted




Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives







Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.





Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.





Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



Industry Zone, covering area 50000 square meters and 350 staff so far.



  2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are



more than 40 professional technical engineers. We had 49 items patents including 7 items of



invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international



invention patent and 5 items which are accepted by National SIPO wait for approval.



  3.  According to the globalization strategy, we have established pre-sale,after-sale and whole-



process selling network. Relying on high quality products and perfect service, our products have



been successfully applied by more than 5000 customers.

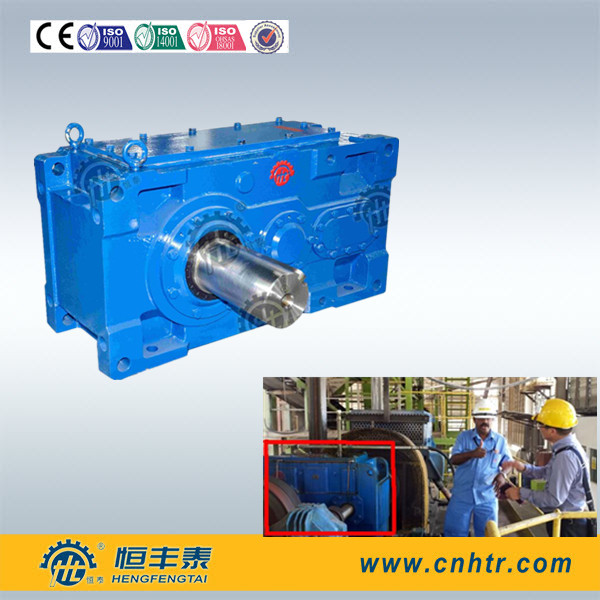

Electric Motor Bevel Gear Reducer 400Kw for Conveyor Drives 0

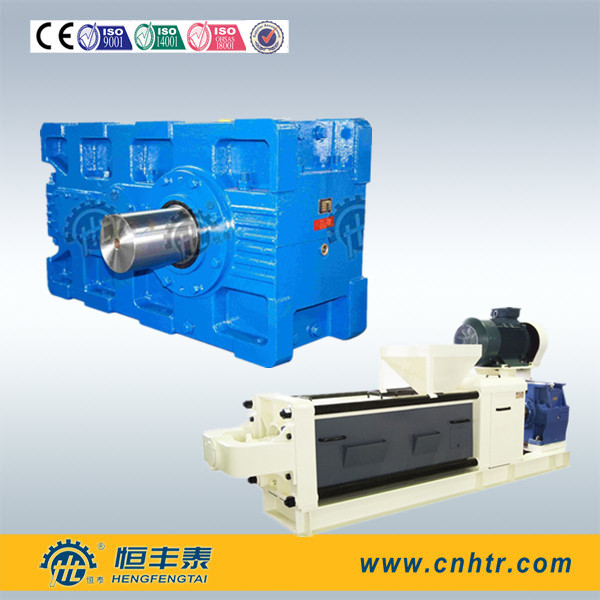

Electric Motor Bevel Gear Reducer 400Kw for Conveyor Drives 1
