B11 Size 3 Stage Bevel Gear Reducer Parallel Shaft Solid Output 80mm Diameter

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HB series
Minimum Order Quantity 5 PIECES
Price USD1000-110000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH
Product Details
High Light

motor speed reducer

,

shaft mounted gear reducer
Leave a Message
Product Description



Mechanical Transmission Bevel Gear Reducer , Shaft Mounted Speed Reducer Gearbox





Quick Details




Gearing Arrangement



Helical



Rated Power



1.1-5100 KW



Ratio



1.25-450



Input Speed



750-1500 RPM



Output Speed



1.67-1200 RPM



Output Torque



450000 N.m



Output shaft diameter



30-420MM



Other Details:



                    Model Number: H1SH3-H4SH26





                    Output shaft: Keyed hollow shaft or solid shaft.





                    Accessories: cooling system, lubrication system





                    Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation





                    Mounting position: foot mounted





                    Packing: Strong wooden cases for exporting





                    Material for box: Cast iron





                    Place of Origin: Zhejiang, China (Mainland)







Descriptions:



B series bevel gear reducer  are widely used in metallurgy, mining, steel, weighing, transportation,



petrochemical, chemical, construction, textile, pharmaceutical, food, transportation, environmental



protection, light industry, plastic, paper, parallel parking, lifting, Bridges, shipbuilding and other heavy



industry department the mechanical transmission fields.





Specification:



Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26





Your benefits:



1, Large ratio


2, Great load-carrying capacity


3, Steady running


4, Low noise


5, High efficiency


6, Competitive price


7, Good quality


8, Good technology support





Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives









The cause for breakdown and settlement of reducer:



Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution















Storage:

1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.



Warranty:



18months.

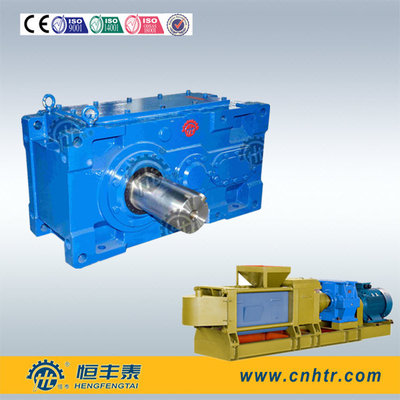

B11 Size 3 Stage Bevel Gear Reducer Parallel Shaft Solid Output 80mm Diameter 0

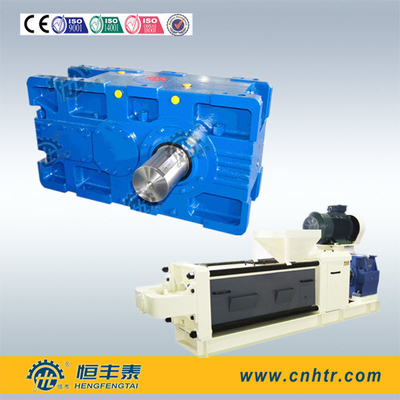

B11 Size 3 Stage Bevel Gear Reducer Parallel Shaft Solid Output 80mm Diameter 1
