Custom Spiral Electric Motor Speed Reducer Gearbox , High Efficiency
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HB series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | motor speed reducer,high speed gearbox |
||
|---|---|---|---|
Product Description
Custom Spiral Electric Motor Speed Reducer Gearbox , High Efficiency
Quick Details
|
|
Helical |
|
Rated Power
|
1.1-5100 KW |
|
Ratio
|
1.25-450 |
|
Input Speed
|
750-1500 RPM |
|
Output Speed
|
1.67-1200 RPM |
|
Output Torque
|
450000 N.m |
|
Output shaft diameter
|
30-420MM |
|
Other Details:
Model Number: H1SH3-H4SH26
Output shaft: Keyed hollow shaft or solid shaft.
Accessories: cooling system, lubrication system
Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation
Mounting position: foot mounted
Packing: Strong wooden cases for exporting
Material for box: Cast iron
Place of Origin: Zhejiang, China (Mainland)
|
|
Descriptions:

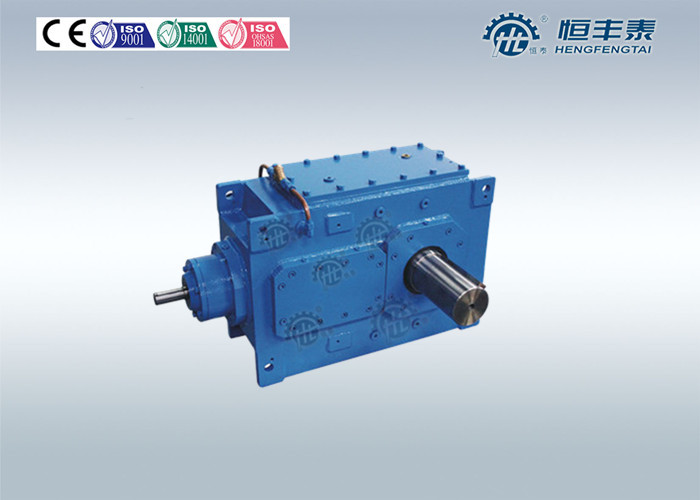

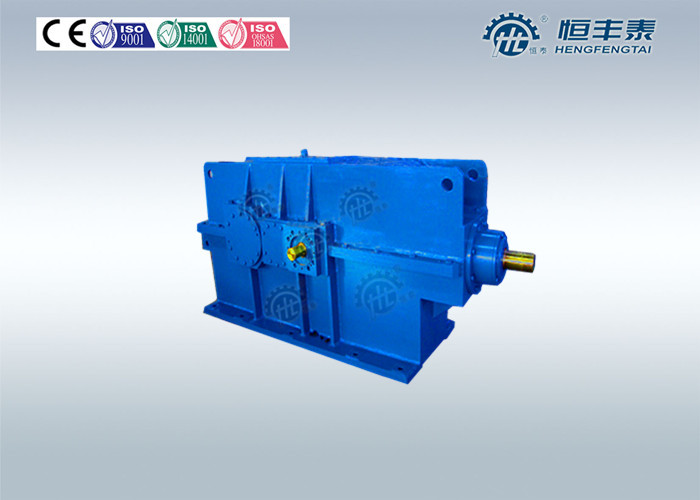

B series bevel gear reducer, which is similar to Flender H.B gearbox, big power and torque.
Horizontal and vertical installation, single to four stage, available in 26 sizes.
Our H.B series bevel gear reducer is modular design system and multi-purpose use of the housing
and internal components. H.B series bevel gear reducer improved noise level through grounded bevel
gear teeth and noise-absorbing housings.
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,
H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26
|
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,
H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26
|
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,
H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
Your benefits:
1, Large ratio
2, Great load-carrying capacity
3, Steady running
4, Low noise
5, High efficiency
6, Competitive price
7, Good quality
8, Good technology support
9, Mounting type: Foot mounted, flange mounted, torque armed mounted
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
The cause for breakdown and settlement of reducer:
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Storage:
1:Pls do not store in outdoor.
2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly
touch the floor.
Warranty:
HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or
replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.
The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or
indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are
more than 40 professional technical engineers. We had 49 items patents including 7 items of
invention patent, 30 items of utility models, 1 item of appearance design, 2 items of international
invention patent and 5 items which are accepted by National SIPO wait for approval.
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-
process selling network. Relying on high quality products and perfect service, our products have
been successfully applied by more than 5000 customers.
