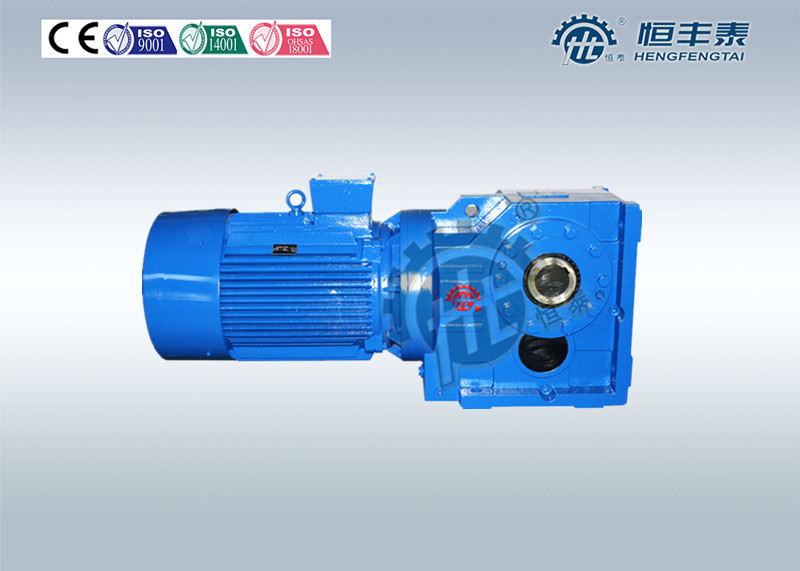

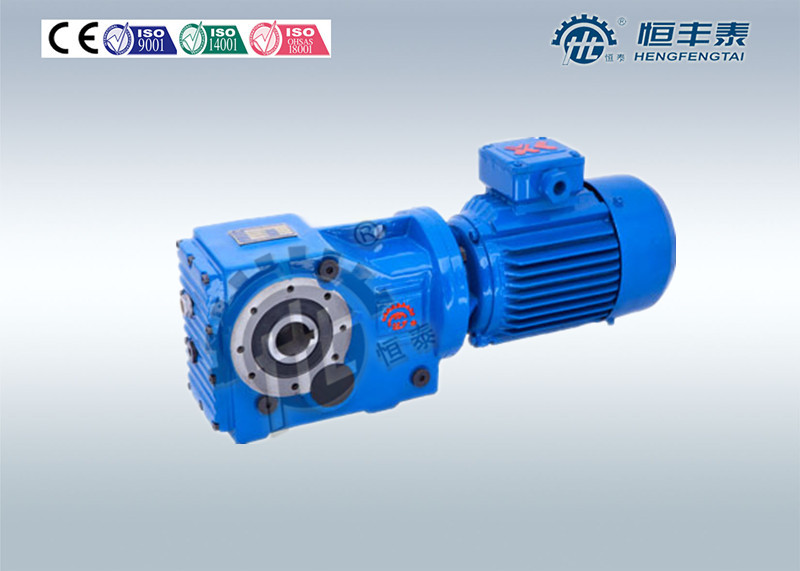

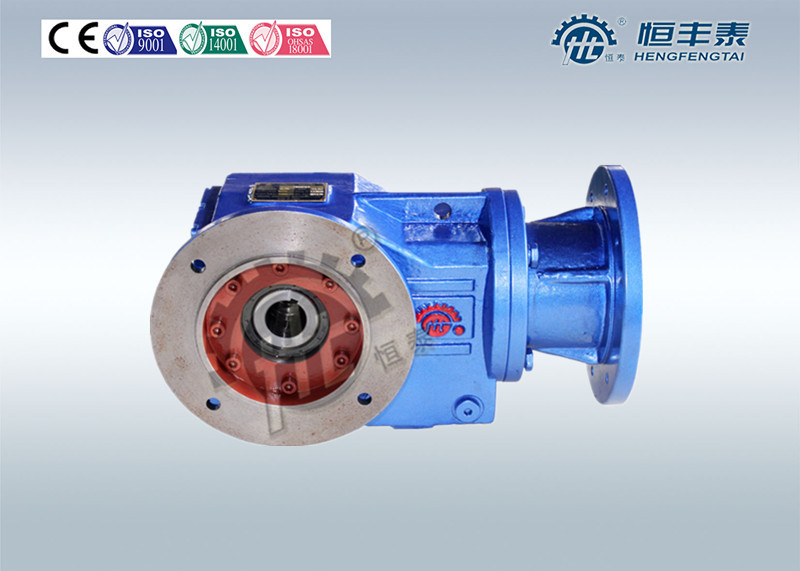

Spiral Bevel Gear Speed Reducer / High Speed Gearbox Torque Arm

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification TUV,CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity 5 PIECES
Price US$ 264-4371
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 30-35 days for bevel gear reducer
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
High Light

shaft mounted gear reducer

,

high speed gearbox
Leave a Message
Product Description



Spiral Bevel Gear Speed Reducer / High Speed Gearbox Torque Arm





Quick Details:





.                 Ratio: 4.09~ 195.2



.                 Output Torque: 170~42500N.m



.                 Rated Power: 0.12~200KW



.                 Model:HK37-HK187





Descriptions:





K series HT brand CE certificated foot - mounted helical bevel gear reducer used for draught fan is the



first product toprove equally good in regard to efficiency and versatility within a highly competitive



context, bothperformance- and price-wise.





Your benefits:



1.     High power density



2.     Long service life



3.     Multi-stage gear unit for low output speeds



4.     Two-stage or three-stage versions



5.      Same reducer as SEW K series





Specification:



           model

37

47

57

67

77

87

Structure

HK..Y.. ( foot mounted )

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

HK..Y.. ( foot mounted )

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870





Applications:

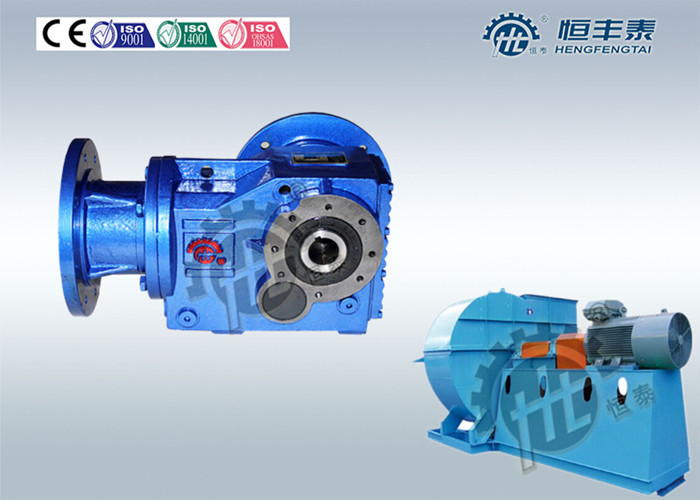

K series HT brand CE certificated foot - mounted helical bevel gear reducer used for draught fan





Spiral Bevel Gear Speed Reducer / High Speed Gearbox Torque Arm 0





Product informations:





Spiral Bevel Gear Speed Reducer / High Speed Gearbox Torque Arm 1



Spiral Bevel Gear Speed Reducer / High Speed Gearbox Torque Arm 2
