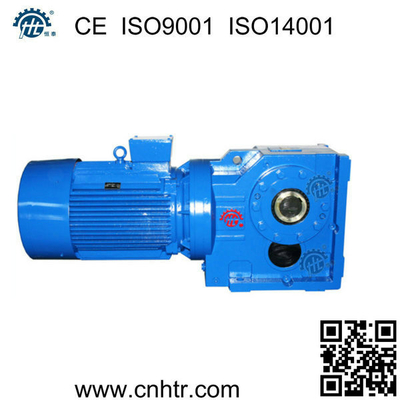

KA107 ratio 20 hollow shaft vertical bevel helical gearbox conveyor belt gear motor reducers

  • KA107 ratio 20 hollow shaft vertical bevel helical gearbox conveyor belt gear motor reducers
Certification ISO9001-2008,CE,
Model Number KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187
Minimum Order Quantity 1 PCS
Price USD 1500.00
Packaging Details 8 PCS/pallet, standard export wooden case.
Delivery Time 15-20 DAYS
Payment Terms TT, L/C, Western Union,
Supply Ability 2000 pcs / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 0.12-160 KW Input Speed 960-1800 Rpm
Input Motor 4 Poles, 6 Poles, 50Hz, 60Hz ··· Ratio 4-195
Torque 170-42500 N.m Output Shaft Solid Or Hollow Shaft 25-160 Mm
Spares Torque Arm; Backstop
Highlight

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

KA107 ratio 20 hollow shaft vertical bevel helical gearbox conveyor belt gear motor reducers:





1.Descriptions:


1). ISO and CE certification.,
2). Foot(M1/B3) or flange(M3/V1) mounted.
3). IEC or NEMA input flange.
4). Dimension same with SEW.




2.Models:



K:       Solid output shaft.
KA:     Hollow shaft output.
KF:     Solid shaft output, with output flange.
KAF:  Hollow shaft output, with output flange.
KAZ:  Hollow shaft output, with small output flange.
KAT:  Hollow shaft output, with torque arm.




3.Technical data:



Model

Shaft diameter

Power

Ratio

Permit torque

Weight

K(solid output shaft)

KA

(hollow output shaft)

K37

25 mm

30 mm

0.12-3 KW

4.09 -106.6

170 N.m

15 kg

K47

30 mm

35 mm

0.12-3 KW

4.66 - 131.7

340 N.m

22 kg

K57

35 mm

40 mm

0.12-4 KW

4.68 -143.5

510 N.m

30 kg

K67

40 mm

40 mm

0.18-5.5 KW

7.16 - 146.2

705 N.m

40 kg

K77

50 mm

50 mm

0.37-11 KW

7.11 - 192.7

1320 N.m

63 kg

K87

60 mm

60 mm

0.75-22 KW

7.42 - 195.2

2300 N.m

94 kg

K97

70 mm

70 mm

1.1-30 KW

8.88 - 176.5

3670 N.m

145 kg

K107

90 mm

90 mm

3-45 KW

8.72 - 147.2

6800 N.m

275 kg

K127

110 mm

100 mm

7.5-90 KW

8.6 - 144.4

11050 N.m

420 kg

K157

120 mm

120 mm

11-160 KW

12.7 - 151.1

15300 N.m

680 kg

K167

160 mm

140 mm

15-200 KW

17.3 - 161

27200 N.m

1130 kg

HK187

190 mm

160 mm

15-200 KW

17.1 - 180.7

42500 N.m

1870 kg





4. Dimensions:

KA107 ratio 20 hollow shaft vertical bevel helical gearbox conveyor belt gear motor reducers 0



5. FAQS:


1). MOQ: 1 pcs
2). Delivery lead time: 18-25 days
3). Payment terms: FOB, CIF
4). Payment method: T/T, 30% in advance, 70% before delivery
5). Shipping port: Shanghai /Ningbo
6). Warranty: 15 months







KA107 ratio 20 hollow shaft vertical bevel helical gearbox conveyor belt gear motor reducers 1



KA107 ratio 20 hollow shaft vertical bevel helical gearbox conveyor belt gear motor reducers 2
