K series spirial bevel gear reducer 90 degree right angle gearbox Gearmotors

  • K series spirial bevel gear reducer 90 degree right angle gearbox Gearmotors
Certification CE, ISO9001, ISO14001, SGS
Model Number K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
Minimum Order Quantity 1 PCS
Price USD200.00-USD5000.00
Packaging Details 8 pcs/pallet;
Delivery Time 25 days send goods after order confirmed.
Payment Terms T/T, L/C, Western Union
Supply Ability 3000 PCS/per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 0.12-200 KW, 4 Poles, 6 Poles Ratio 4.09-192.7
Input Speed 960-1800 Rpm Output Speed 7-440 Rpm
Output Torque 170-42500 N.m Output Shaft Hollow Or Solid Shaft
Shaft Diameter 25-160 Mm
Highlight

shaft mounted gear reducer

,

high speed gearbox
Leave a Message
Product Description

K series spirial bevel gear reducer 90 degree right angle gearbox Gearmotors:


Types:


HK:       Solid shaft output
HKA:     Hollow shaft output
HKF:     Solid shaft output, with output flange.
HKAF:  Hollow shaft output, with output flange.
HKAZ:  Hollow shaft output, with small output flange.
HKAT:  Hollow shaft output, with torque arm.


Models and technical data:

Model

Shaft diameter

Power

Ratio

Permit torque

Weight

solid shaft

hollow shaft

HK37

25 mm

30 mm

0.12-3 KW

4.09 -106.6

170 N.m

15 kg

HK47

30 mm

35 mm

0.12-3 KW

4.66 - 131.7

340 N.m

22 kg

HK57

35 mm

40 mm

0.12-4 KW

4.68 -143.5

510 N.m

30 kg

HK67

40 mm

40 mm

0.18-5.5 KW

7.16 - 146.2

705 N.m

40 kg

HK77

50 mm

50 mm

0.37-11 KW

7.11 - 192.7

1320 N.m

63 kg

HK87

60 mm

60 mm

0.75-22 KW

7.42 - 195.2

2300 N.m

94 kg

HK97

70 mm

70 mm

1.1-30 KW

8.88 - 176.5

3670 N.m

145 kg

HK107

90 mm

90 mm

3-45 KW

8.72 - 147.2

6800 N.m

275 kg

HK127

110 mm

100 mm

7.5-90 KW

8.6 - 144.4

11050 N.m

420 kg

HK157

120 mm

120 mm

11-160 KW

12.7 - 151.1

15300 N.m

680 kg

HK167

160 mm

140 mm

15-200 KW

17.3 - 161

27200 N.m

1130 kg

HK187

190 mm

160 mm

15-200 KW

17.1 - 180.7

42500 N.m

1870 kg



Business FAQS:


1). MOQ: 1 pcs
2). Delivery lead time: 18-25 days
3). Payment terms: FOB, CIF
4). Payment method: T/T, 30% in advance, 70% before delivery
5). Shipping port: Shanghai /Ningbo
6). Warranty: 15 months


Pictures:

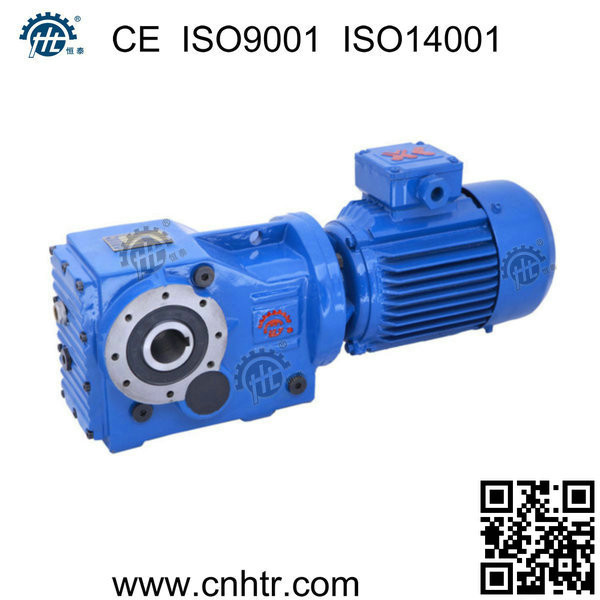

  K series spirial bevel gear reducer 90 degree right angle gearbox Gearmotors 0

K series spirial bevel gear reducer 90 degree right angle gearbox Gearmotors 1
