Horizontal Speed Reduction Gearbox Solar Tracking Gearbox Tilting Moment

  • Horizontal Speed Reduction Gearbox Solar Tracking Gearbox Tilting Moment
  • Horizontal Speed Reduction Gearbox Solar Tracking Gearbox Tilting Moment
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HDR series
Minimum Order Quantity 1pcs
Price US $ 3000 - 90000 / Piece
Packaging Details 1 PCS packed in ONE WOODEN CRATE
Delivery Time 40 days
Payment Terms T/T or LC
Supply Ability 100pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperatue -10 To +50 Degree Temperatue -10 To +50 Degree
Model HDR Tower Model Model HDR Tower Model
Torque 68000Nm Torque 68000Nm
Mirror Volume 144 Square Meters Ratio 42000
Weight 320Kg Weight 320Kg
Highlight

cyclo gear reducer

,

speed reduction gearbox
Leave a Message
Product Description

Horizontal Speed Reduction Gearbox Solar Tracking Gearbox Tilting Moment



Features:

Gearing Arrangement: Dual drive transmission device
Ratio:  35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting



Model/Data



Ratio

Max dynamic torque(N.m)

Max static torque(N.m)

Tilting moment toque

Torsional Stifness

(N.m/rad)

Backlash

(degree)

HDR30

Horizontal

11088

3150

4500

5500

3.53*10e6

0.015

Elevation

8348.4

HDR50

Horizontal

11088

4950

7030

8500

5.41*10e6

0.015

Elevation

8348.4

HDR100



Horizontal

40200

10190

15500

22500

6.84*10e6

0.015

Elevation

40367.5

HDR190

Horizontal

40200

18670

28290

44000

11.27*10e6

0.015

Elevation

40367.5

HDR270



Horizontal

50250

27500

45800

70000

23.69*10e6

0.015

Elevation

50417.5

HDR400

Horizontal

50250

39900

66500

90000

32.07*10e6

0.015

Elevation

50417.5

HDR600

Horizontal

55200

62500

104000

110000

47.7*10e6

0.015

Elevation

55372.5



Competitive Advantage:



  • Facilities

  • 550,000 square feet manufacturing facilities
  • 400 employees
  • Major US & European OEM customers
  • ISO 9001:2000 certificate
  • ISO 14001 Certificate
  • GB/T 28000 Certificate
  • Over two decades of planetary reducer production experience
  • 5,000 square feet warehouse in Los Angeles, California USA



Certification

  • ISO 9001: 2000 Cert.
  • ISO 14001 Cert.
  • GB/T 28001 Cert.
  • TUV
  • SGS



Quality Control System

  • 100% products Inspected by CMM
  • Gear Inspection Center
  • Material Inspection Lab
  • Trial Running Inspection
  • Leakage Inspection

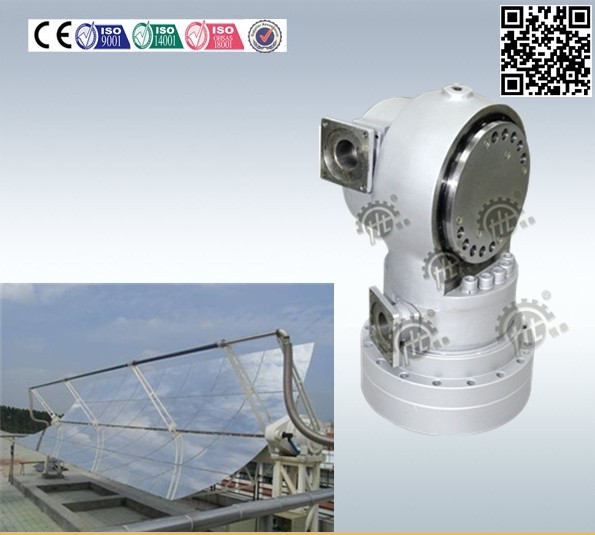

Horizontal Speed Reduction Gearbox Solar Tracking Gearbox Tilting Moment 0

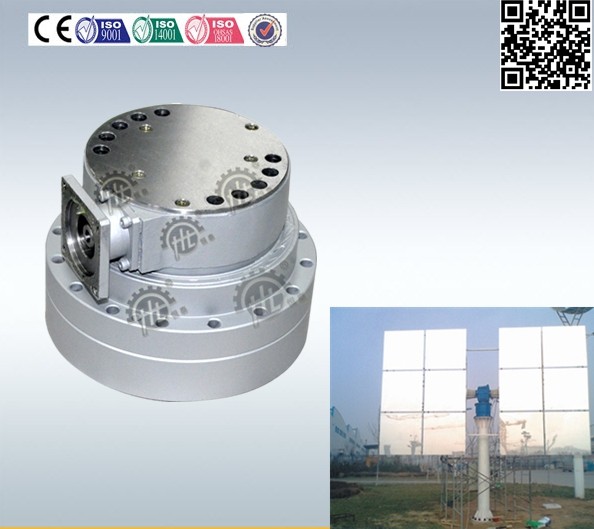

Horizontal Speed Reduction Gearbox Solar Tracking Gearbox Tilting Moment 1
