Double Output Speed Helical Gear Reducer , 59-62HRC Planetary Gear Reducer

  • img.alt
  • img.alt
Place of Origin China, Zhejiang Province
Brand Name Hengtai Reducer
Certification ISO9001-2008; CE; SGS
Model Number B3SH, B3HH-5,6,7,8,9,10,11,12,13,14,15,16,17
Minimum Order Quantity 1 sets
Price USD 800.00~5000.00 / pcs
Packaging Details 1 PCS / pallet, used export wooden box.
Delivery Time 25-30 work days.
Payment Terms Western Union
Supply Ability 500 PCS per month
Product Details
Material HT250 For Gear House, 20CrMnTi For Gears, 40CrMnTi For Shafts Gear Tooth Hardened 59~62 HRC
Gear Ratio 25~71 Input Power 2.2~600 KW
Input Speed 960, 1000, 1200, 1500, 1800 Rpm Output Shaft Solid Or Hollow Shaft
Cooling System Yes
High Light

motor speed reducer

,

high speed gearbox
Leave a Message
Product Description

Double speed bevel gear reducer bucket elevator drives gearbox :




Quickly descriptions for models:



B3: 3 stages transmission, ratio from 25 to 71.
B3SH5~B3SH18: Solid shaft output

B3HH5~B3HH18: Hollow shaft output





Applications:



1).Cement & building material;
2).Harbor & ship building;
3).Metallurgy & mining;
4).Chemical & recycling





Technical data:

Power range: 5.5~300 kw, 960 rpm, 1000 rpm, 1200 rpm, 1500 rpm, 1800 rpm
Ratio:            25, 28, 31.5, 35.5, 40, 45, 50, 56, 63, 71
Output torque: 8000~136000 N.m





Max torque capability:



B3SH5 B3SH6 B3SH7 B3SH8 B3SH9 B3SH10 B3SH11 B3SH12 B3SH13 B3SH14 B3SH15 B3SH16
8000N.m 12000N.m 16800N.m 21600N.m 28000N.m 35000N.m 50000N.m 60000N.m 71000N.m 88000N.m 120000 136000






Design Principles and usage:



The bucket elevator drives composed by 2 gearbox, HKAF bevel gear motor and B series bevel gearbox, with 2 motor to drive it and 2 output speed according to applications.



Generally, HKAF bevel gear motor with small power and big ratio, B series bevel gearbox with big power and small ratio.

Normally we used B series gearbox with the big power motor drive for normal speed running, we also can turn off B series bevel gearbox and open HKAF bevel gear motor when want to change speed lower.




Sales service:

1). Select suitable models for customers application according to technical data power KW and gearbox ratio or output speed rpm requirements.
2). Provide drawing dimension for customers.
3). Quoted price, make proforma invoice for order.
4). Delivery time: 35 days.
5). Payment: T/T, L/C
6). Shipment: FOB China any seaports, CIF customers destination seaports.
7).Send shipment documents for customers Custom Clearance.
8). Warranty: 15 months.

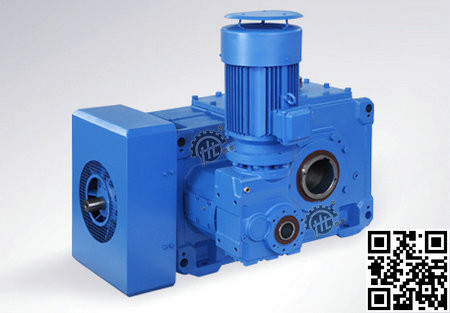

Double Output Speed Helical Gear Reducer , 59-62HRC Planetary Gear Reducer 0

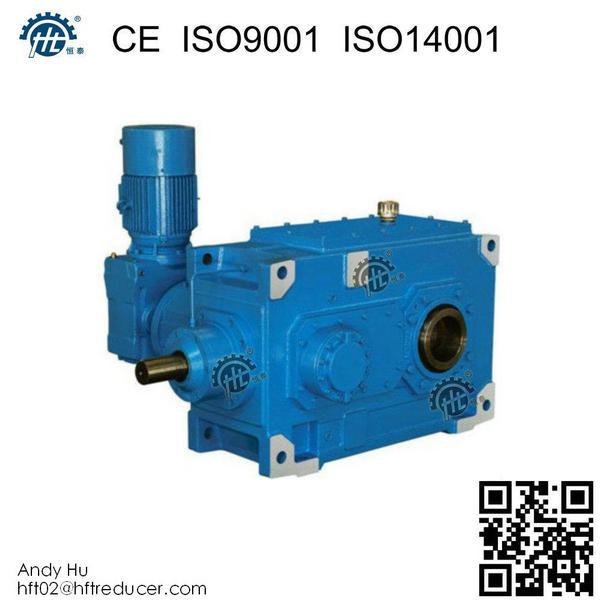

Double Output Speed Helical Gear Reducer , 59-62HRC Planetary Gear Reducer 1




For more questions, please freely to contact us:


Andy Hu(Sales Engineer)

Mobile (what's app): 0086-13566146830

Tel:  0086-577-86111028
Fax: 0086-577-86118098
